Product Overview

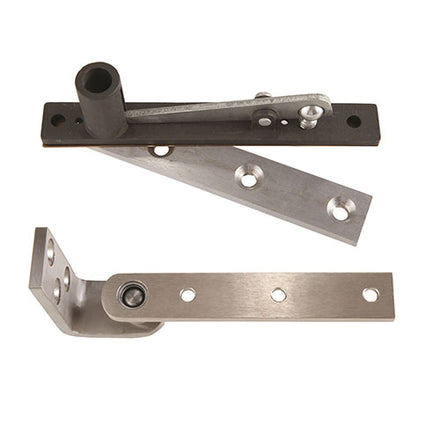

ABH 0127 Side Jamb Mounted Pivot Set - Center Hung
- Non-Handed
- Pivot set is centered into the door thickness
- Maximum door load 200 lbs.
- Maximum door size - 42" x 102"
- Average weight per unit = 2.5 lbs
- Meets or exceeds ANSI C07042
Includes:
- 0320 Top Pivot: Frame leaf mortises into header, Door leaf mortises into top of door

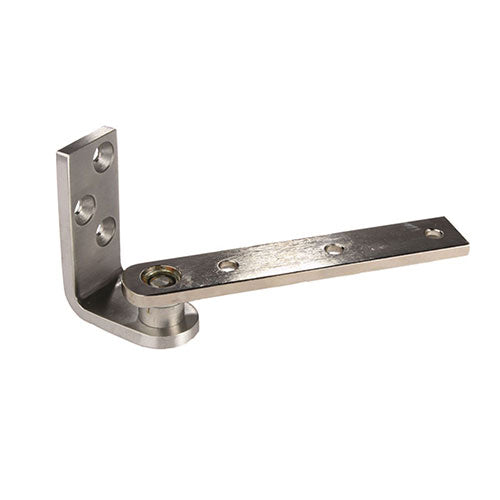

- 0127 Bottom Pivot: Bottom leaf mortises into side jamb and rests on floor, Door leaf mortises into bottom of door
| Brand |
ABH |
|---|---|
| Door Weight |
Up to 200 Pounds |
| Finish |
Stainless Steel |
| Finishes |
US32D (630) Satin Stainless Steel |
| Hand |
Non-handed |
| Pivot Type |
Center Hung Pivots |
| Usage |
Standard Duty |
ABH 0127 Jamb Mounted Pivot Set, Center Hung
