ABH

ABH 0128 Floor Mount Pivot Set, Center Hung

$121.85
Usually Ships:  3-5 Business Days
  • For doors up to 250 lbs.
  • Maximum door size - 42" x 102"
  • Meets or exceeds ANSI C07032
Added to Cart

Product Overview

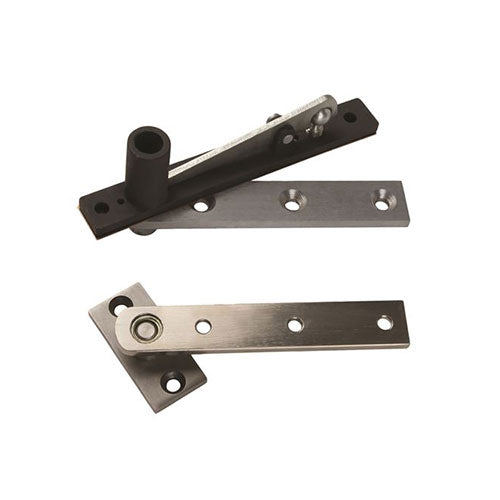

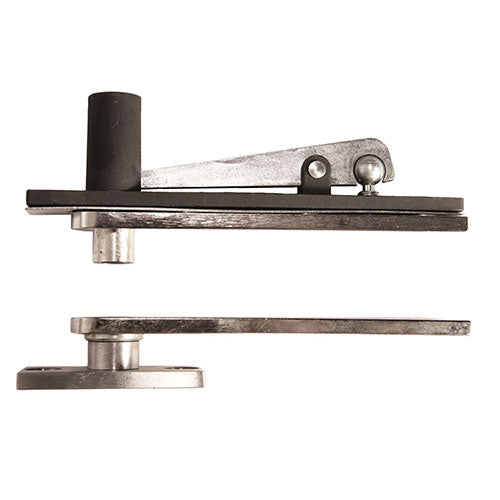

ABH 0128 Pivot Set - Center Hung

  • Non-Handed
  • Pivot set is centered into the door thickness
  • Maximum door load 250 lbs.
  • Maximum door size - 42" x 102"
  • Average weight per unit = 2.5 lbs
  • Meets or exceeds ANSI C07032

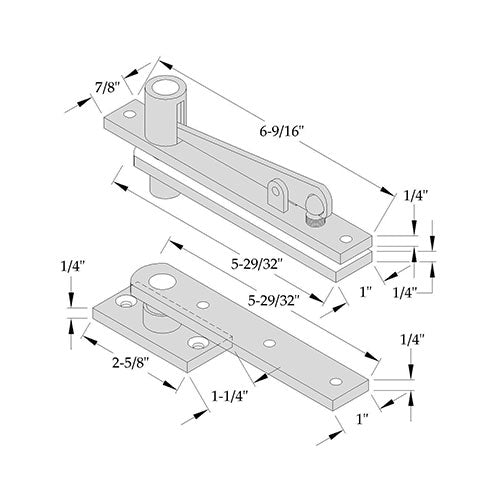

Includes:

  • 0320 Top Pivot: Frame leaf mortises into header, Door leaf mortises into top of door
  • 0128 Bottom Pivot: Bottom leaf mortises on top of finished floor, Door leaf mortises into bottom of door
Brand

ABH
Door Weight

up to 250 lbs.
Finish

Stainless Steel
Finishes

US32D (630) Satin Stainless Steel
Hand

Non-handed
Pivot Type

Center Hung Pivots
Usage

Standard Duty
0128 Floor Mount Pivot Set, Center Hung
ABH 0128 Floor Mount Pivot Set, Center Hung
