ABH 0147 Offset Pivot Set

ABH 0147 Pivot Set, Floor Mount, 3/4" Offset, Heavy-Duty

• 19 intermediate pivot recommended (order separately)
• Handed - Specify LH or RH
• Maximum door load 300 pounds
• Maxium door width - 48"
• UL listed for use on 3-hour fire rated doors - Standard
• Heavy duty bearings
• Stainless steel base material
• Average weight per unit = 3.25 lbs
• Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.
• Meets or exceeds ANSI C07162 & C07202

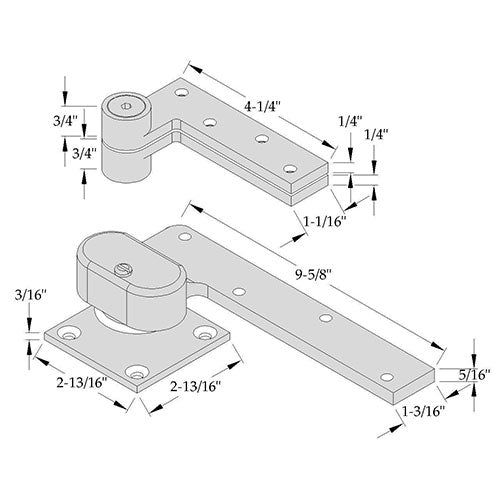

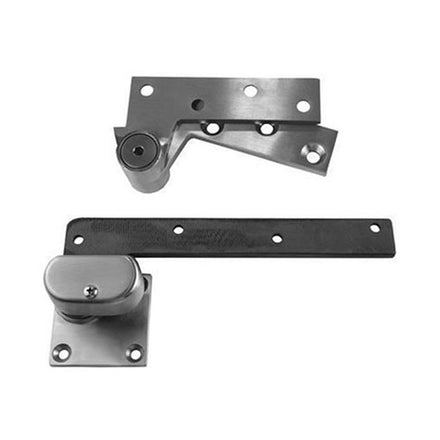

Includes:

• 0180 Top Pivot: Frame leaf mortises into header, Door leaf mortises into top of door
• 0147B Bottom Pivot: Bottom leaf mounts on top of concrete floor, Door leaf mortises into bottom of door
