ABH 0195 Offset Pivot Set

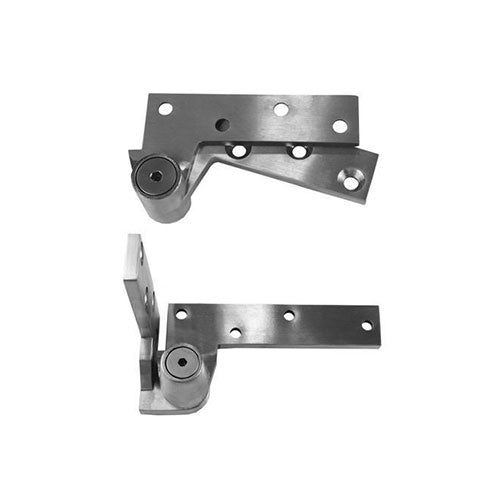

ABH 0195 Pivot Set, Side Jamb Mount, 3/4" Offset, Heavy-Duty

• 019 intermediate pivot recommended (order separately)
• Handed - Specify LH or RH
• Maximum door load 450 pounds
• Maxium door width - 48"
• UL listed for use on 3-hour fire rated doors - Standard
• Heavy duty bearings
• Stainless steel base material
• Average weight per unit = 3.5 lbs
• Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.

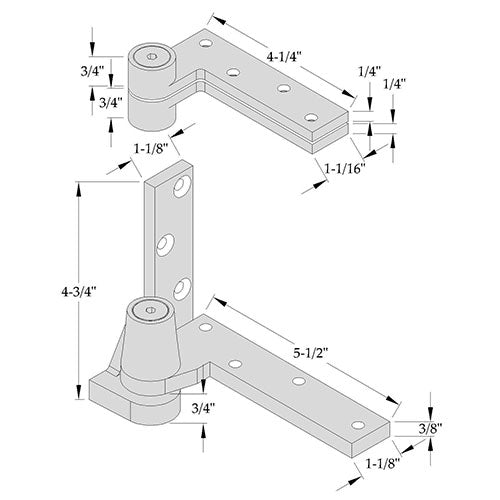

Includes:

• 0180 Top Pivot: Frame leaf mortises into header, Door leaf mortises into top of door
• 0195 Bottom Pivot: Bottom leaf mortises into side jamb and rests on floor, Door leaf mortises into botton of door
