Accentra (Formerly Yale)

Accentra (Formerly Yale) 2110(F) x AU628F Surface Vertical Exit Device with Passage Lever Trim

$632.96
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (Passage)
  • Includes AU-628F lever trim

Available Options:

Clear

Product Overview

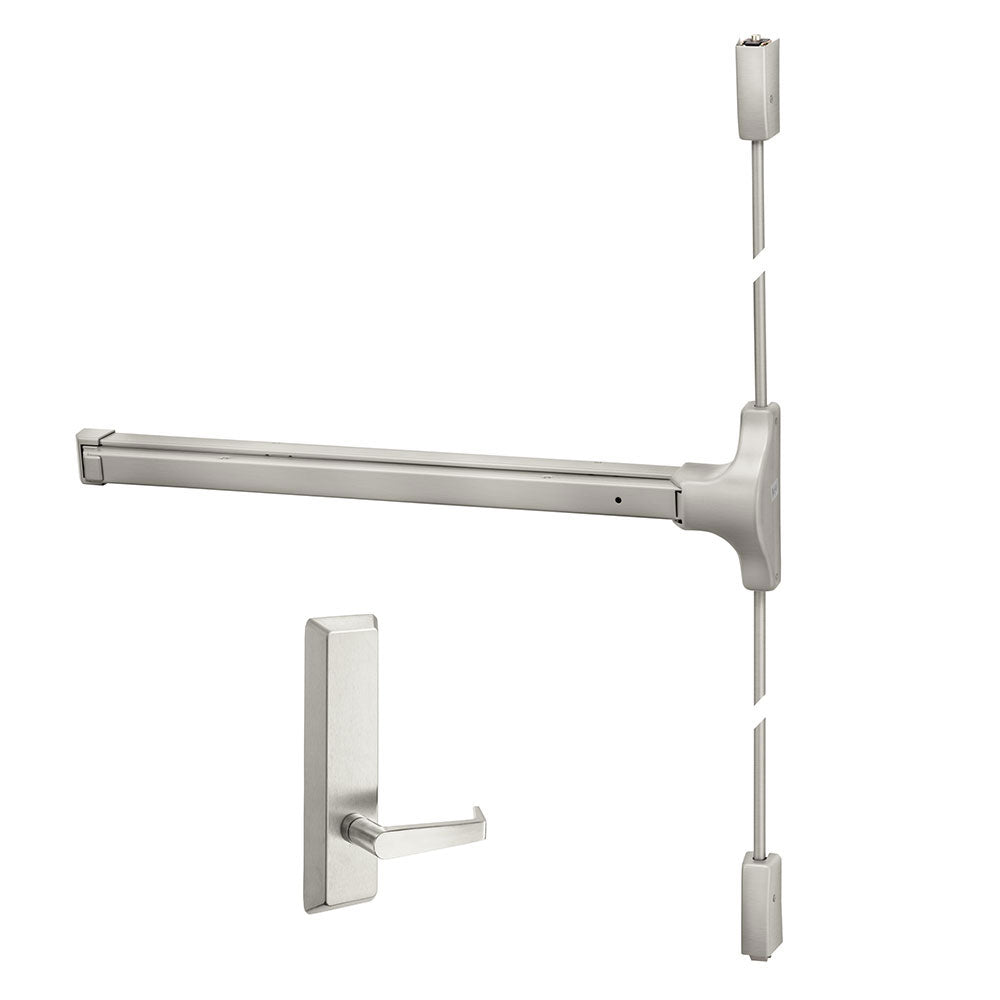

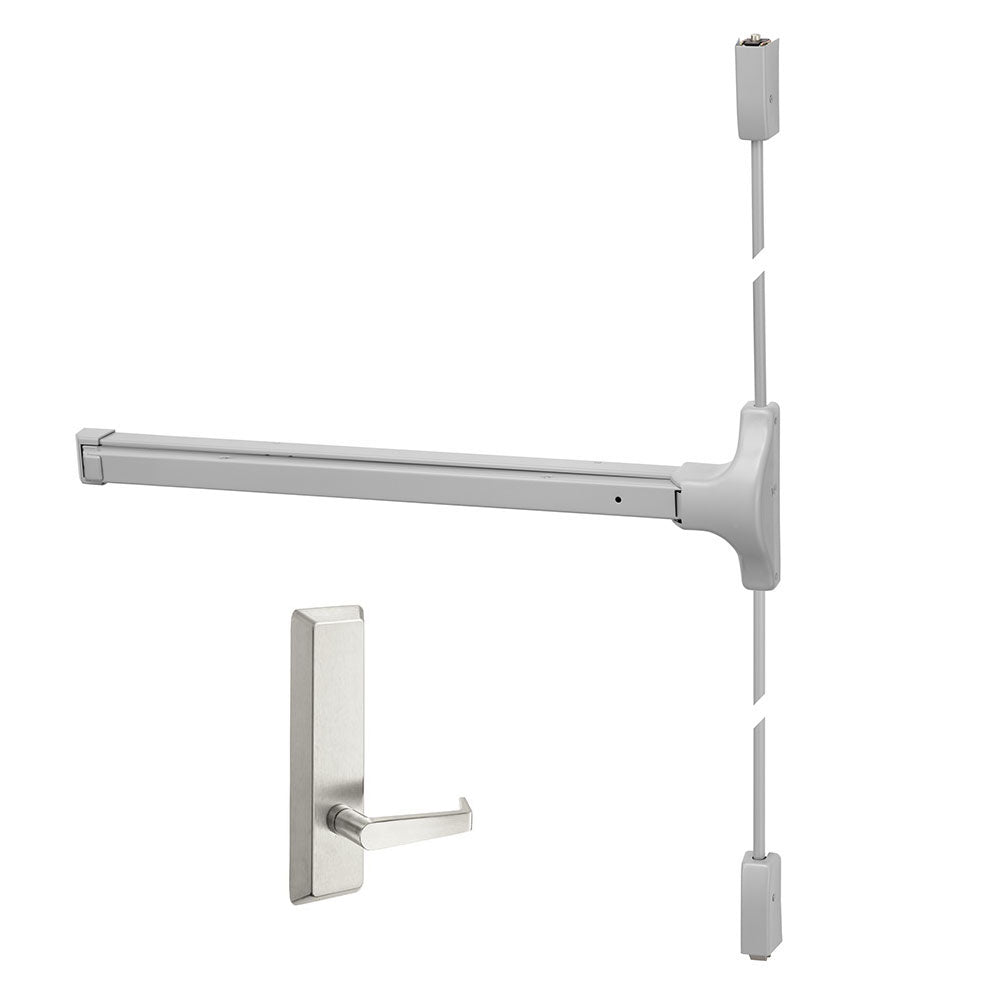

Accentra (formerly Yale) 2110/2110F Surface Vertical Rod Exit Device, AU-628F Passage Lever Trim


The 2110(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.
  • ANSI Function 14 (Passage): Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Non-handed for easy installation
  • Designed for wide stile doors
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut
UL/cUL Listed:
  • FVSR/FVSR7 - Panic hardware
  • GXHX/GXHX7 - Fire exit hardware (F) (up to 4' x 8' single, 8' x 8' pairs, 3 hr.)
AU-628F Lever Trim
  • ANSI Function: 14
  • AU (Agusta) lever design
  • Trim through-bolts to exit device for strength
  • Field reversible – ships as RHR
  • Dimensions: 3″ x 10-1/4″ x 13/16″
  • Projection: 2-5/8″
