Product Overview

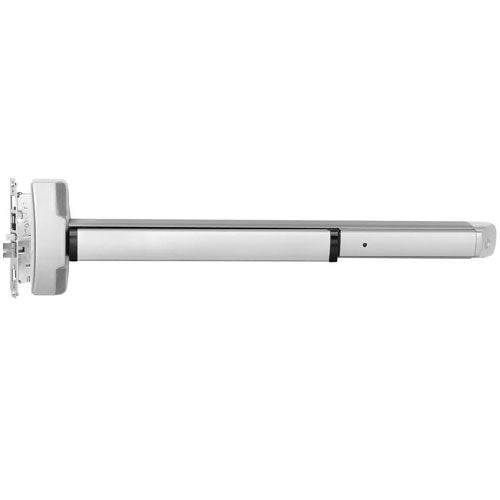

Accentra (formerly Yale) 6130ED(F) Mortise Lock Exit Device, Exit Only, No Trim
The 6130ED(F) is an exit device integrated with the 8700 Series Mortise Lock for use on single doors or active leaf of a pair of doors where life safety and extra security are required. The 8700 Series Mortise Lock is modified for use with exit devices only.
- Exit Only (no outside trim)
- Designed for wide stile and flush doors
- Handed. Specify hand (field reversible)
- Two-piece mechanical 3/4" throw deadlocking stainless steel latchbolt
- Requires 86 edge door prep
Applications
- Single swing doors
- Pairs of doors with removable mullions
- Wide stile aluminum, metal, wood, or composite door materials
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.3 Grade 1 |
|---|---|
| Brand |
Accentra (Formerly Yale) |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4" Metal wood or composite doors |
| Fasteners |
Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Finish |
Stainless Steel |
| Finishes |
630 Satin Stainless Steel |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
3 Hour Fire-Rated |
| Hand |
LHR (Left Hand Reverse)RHR (Right Hand Reverse) |
| Handing |
Handed - Field Reversible |
| Latchbolt |
Two piece mechanical 3/4" (19mm) deadlocking stainless steel with anti-friction insert and auxilliary deadlocking latch |
| Length |
36" (for 30" to 36" Doors)48" (for 42" to 48" Doors) |
| Minimum Stile Width |
4-1/2" |
| Projections |
3-1/4" active 2-1/2" dogged |
| Stile Type |
Wide (Standard) |
| Strike |
798 curved lip; 612 or 712 optional for pairs with astragals 618 or 718 optional open-back strike |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
