Accentra (Formerly Yale)

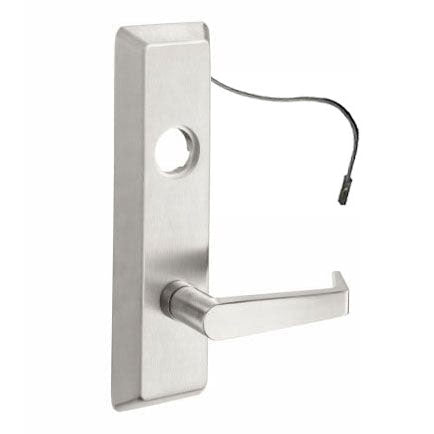

Accentra (Formerly Yale) 691F Electrified Exit Device Escutcheon Lever Trim, Fail Secure

$823.80
This item ships FREE! Usually Ships:  20-30 Business Days
  • For use with all Accentra/Yale 7000, 6000, 2100 Series devices
  • Lever is locked when power is Off (free wheeling)
  • Cylinder required (sold separately)

Available Options:

Clear

Product Overview

Accentra (formerly Yale) AU691F Escutcheon x Cylinder x Lever, Fail Secure, Less Cylinder, Augusta Lever

The electrified 600 Series heavy-duty trim provides electric locking and unlocking of trim. Ideal for door control where increased security is necessary at all times, while meeting life safety codes. Electric trim is ideal for many applications, including stairwell towers, high-security areas, schools, hospitals, and factories.

  • Lever is locked when power is Off (free wheeling)
  • Power off allows entry from trim
  • Inside device is always active for egress
  • Mechanical key override (F09 Function - Key allows lever to retract latchbolt. Key can only be removed in locked position.)
  • Plug connector with 4' wire lead (Exit device is used as wire raceway, not door)
  • Projection: 2-5/8"
  • Trim through-bolts to exit device for strength
  • Beveled sides improve attack resistance
  • Solid forged escutcheon and Free-Wheeling trim resists vandalism and abuse
  • Dimensions: 3" x 10-1/4" x 13/16"

Electrical Specifications

  • 330 mA @ 24 Volts - SM – Security Monitor Switch
  • 4 AMP @ 250VAC Voltage: 24 VAC/VDC only
  • BPS Series power supplies recommended.
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Finish

BlackStainless SteelDark Bronze
Finishes

613e Dark Oxidized Satin Bronze equivalent630 Satin Stainless SteelBSP Black Suede Powder Coat
Function

Storeroom
Handing

Completely Reversible
Lever Design

AU (Augusta)
Usage

Heavy Duty
