Product Overview

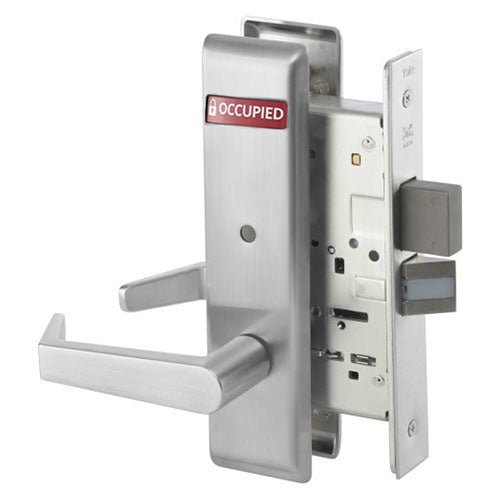

Accentra (formerly Yale) AUCN8802FL ANSI/BHMA Grade 1 Certified Mortise Lock, Privacy Function, Double Indicator Inside and Outside, Augusta Lever, VN Escutcheon
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

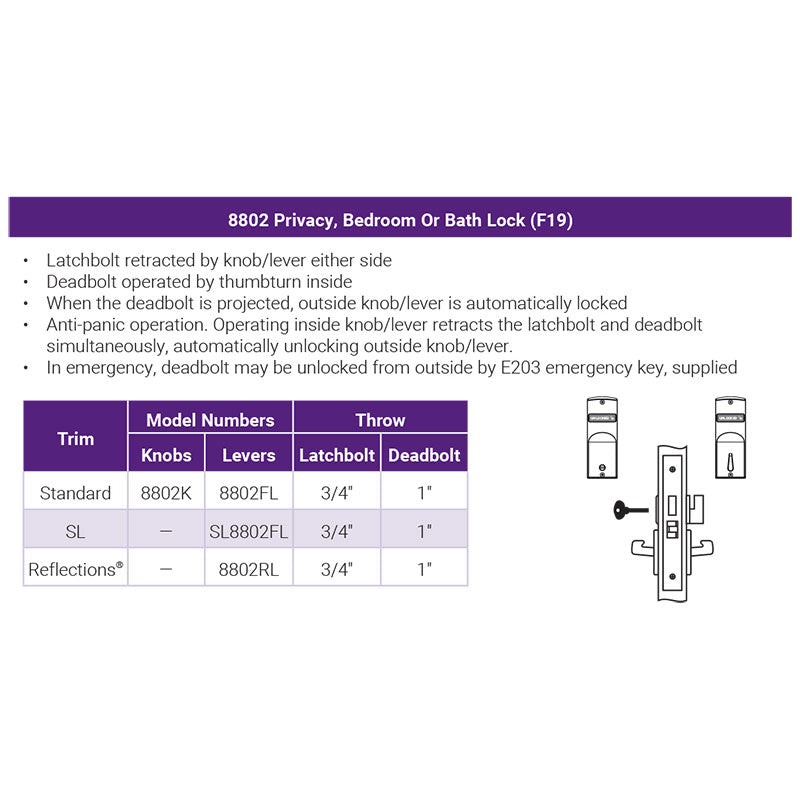

ANSI F19 – Privacy, Bedroom or Bath – Latchbolt retracted by lever either side. Deadbolt operated by thumbturn inside. When the deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever. In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied.
Features
- Large viewing indicator window
- Patented curved design for viewing at multiple angles
- Highly reflective viewing window for increased safety
- Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL/cUL fire rated up to 3 hours
- Windstorm Certified (refer to local codes)
- 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Field reversible handing

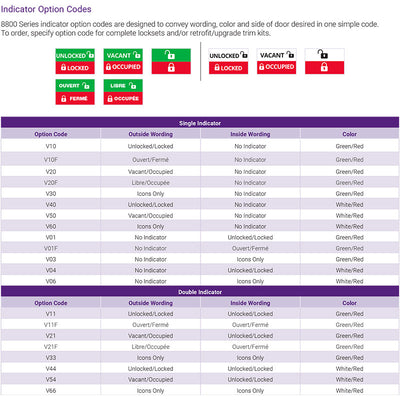

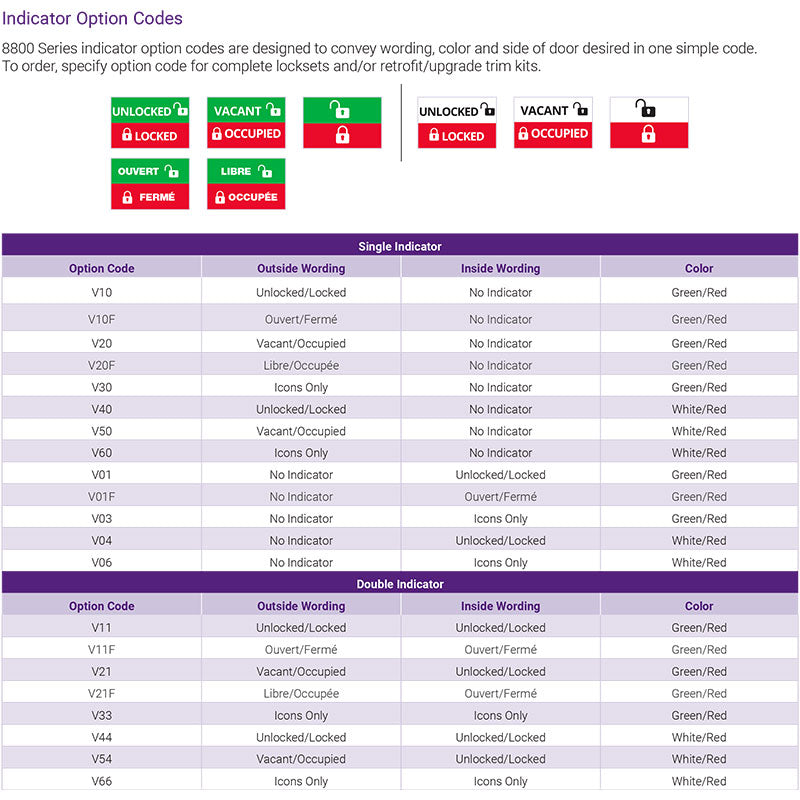

- V21 Double Indicator (Vacant/Occupied, Green/Red Outside – Unlocked/Locked, Green/Red Inside)
- V54 Double Indicator (Vacant/Occupied, White/Red Outside – Unlocked/Locked, White/Red Inside)
- Restrooms
- Quiet rooms
- Nursing mother’s rooms
- Classroom doors
| Brand |
Accentra (Formerly Yale) |
|---|---|
| Finishes |
613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Indicator Option Code |
V21 Vacant/Occupied Outside - Unlocked/Locked Inside (Green/Red), V54 Vacant/Occupied Outside - Unlocked/Locked Inside (White/Red) |
| Lock Function |
Privacy with Indicator |
| ANSI Function |
F19 |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Latchbolt |
3/4" throw, stainless steel one-piece anti-friction |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case |
wrought steel, zinc dichromated |
| Armored Front |
8" x 1-1/4" |
| Door Thickness |
1-3/4" |
| Lever Design |
AU (Augusta) |
| Escutcheon Design |
VN |
| Warranty |
10 Years |
Accentra (Formerly Yale) AUVN 8802FL Privacy, Bedroom, or Bath Mortise Lock with Double Indicator Inside/Outside, Augusta Lever, VN Escutcheon
