Product Overview

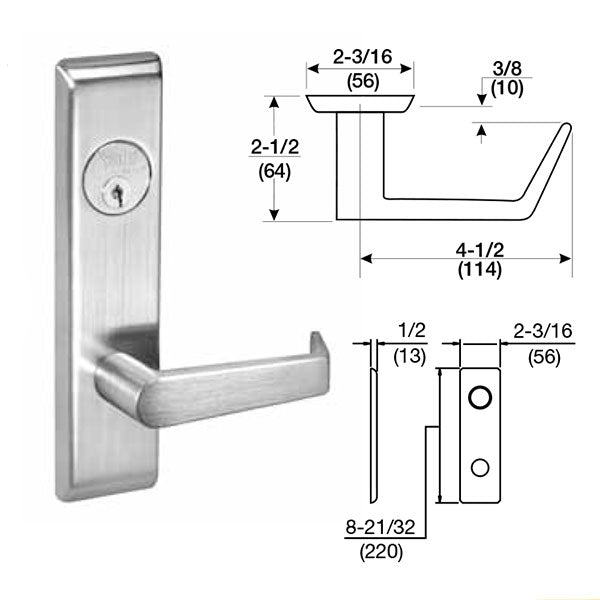

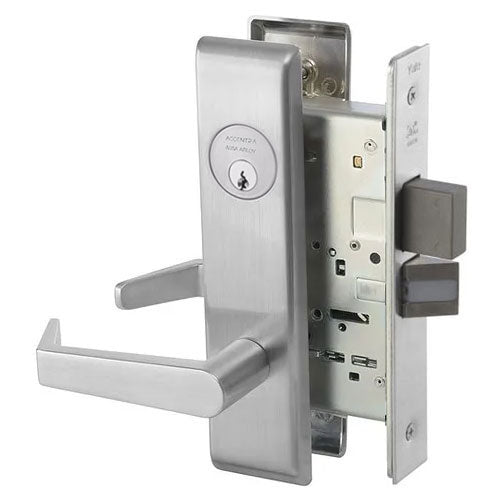

Accentra (formerly Yale) AUCN8840FL ANSI/BHMA Grade 1 Certified Mortise Lock, Storeroom with Deadbolt, Augusta Camden AUCN Escutcheon Lever Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

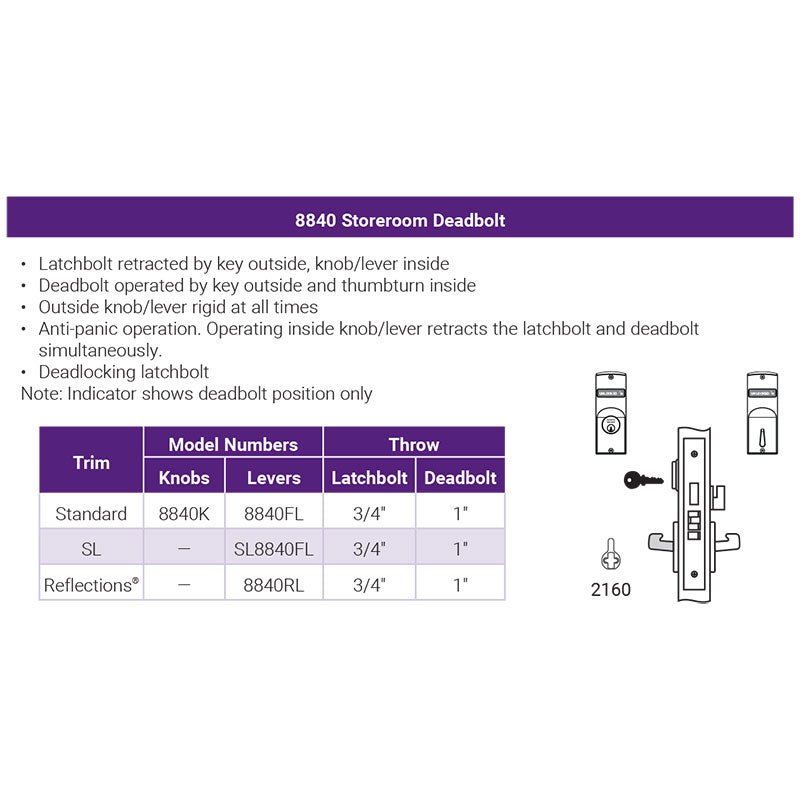

Storeroom with Deadbolt Lock
- Latchbolt retracted by key outside, knob/lever inside
- Deadbolt operated by key outside and thumbturn inside
- Outside knob/lever rigid at all times
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously.
- Deadlocking latchbolt
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| Brand |
Accentra (Formerly Yale) |
|---|---|
| Finishes |
613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Lock Function |
Storeroom |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Latchbolt |
3/4" throw, stainless steel one-piece anti-friction |
| Deadbolt |
Stainless steel, 1” throw |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case |
wrought steel, zinc dichromated |
| Armored Front |
8" x 1-1/4" |
| Door Thickness |
1-3/4" |
| Lever Design |
AUCN (Augusta Camden) |
| Warranty |
10 Years |
Accentra (Formerly Yale) AUCN 8840FL Storeroom with Deadbolt Mortise Lock with Augusta Lever, CN Escutcheon
