Accentra (formerly Yale) AUCN8867FL ANSI/BHMA Grade 1 Certified Mortise Lock, Dormitory or Exit Function, Augusta Camden AUCN Escutcheon Lever Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

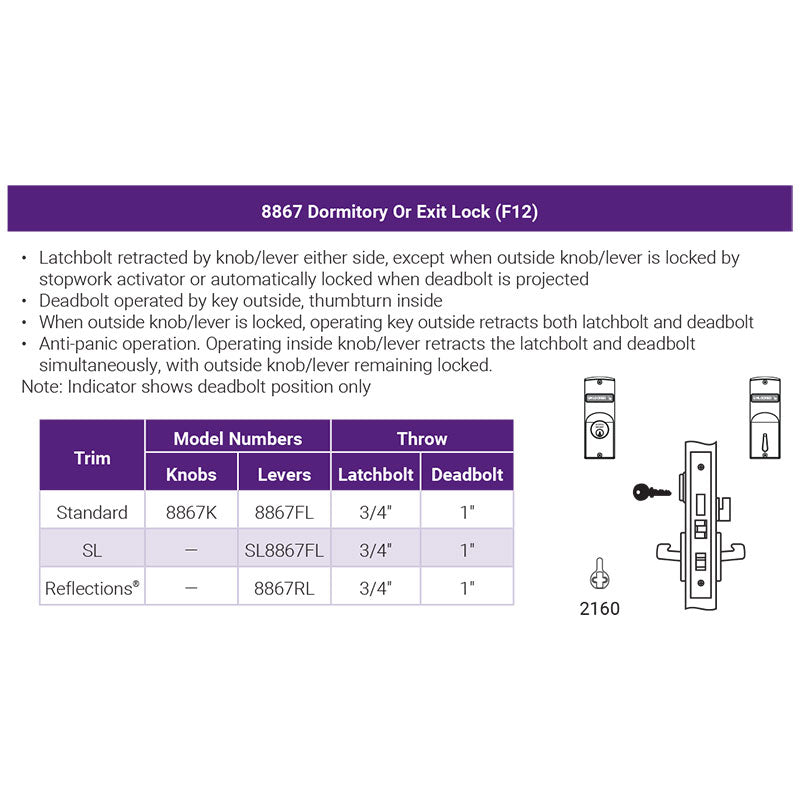

ANSI F12 – Dormitory or Exit Lock
- Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator or automatically locked when deadbolt is projected
- Deadbolt operated by key outside, thumbturn inside
- When outside knob/lever is locked, operating key outside retracts both latchbolt and deadbolt
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, with outside knob/lever remaining locked.
Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| Brand |
Accentra (Formerly Yale) |
|---|---|
| Finishes |
613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Lock Function |
Dormitory |
| ANSI Function |
F12 |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Latchbolt |
3/4" throw, stainless steel one-piece anti-friction |
| Deadbolt |
Stainless steel, 1” throw |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case |
wrought steel, zinc dichromated |
| Armored Front |
8" x 1-1/4" |
| Door Thickness |
1-3/4" |

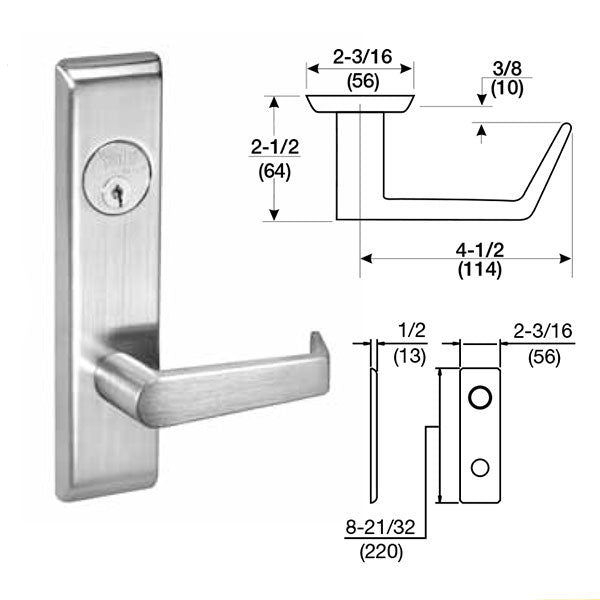

| Lever Design |
AUCN (Augusta Camden) |
| Warranty |
10 Years |

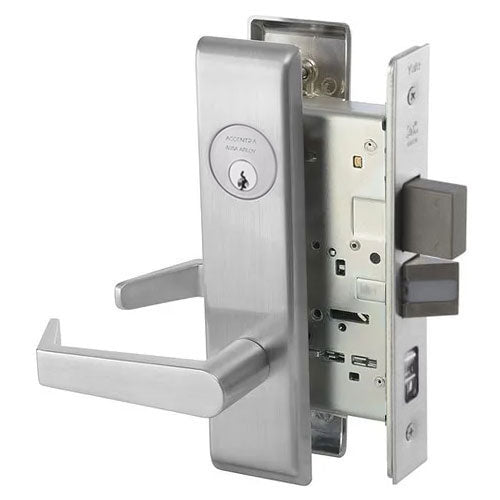

Accentra (Formerly Yale) AUCN 8867FL Dormitory or Exit Mortise Lock with Augusta Lever, CN Escutcheon
