Accentra (Formerly Yale)

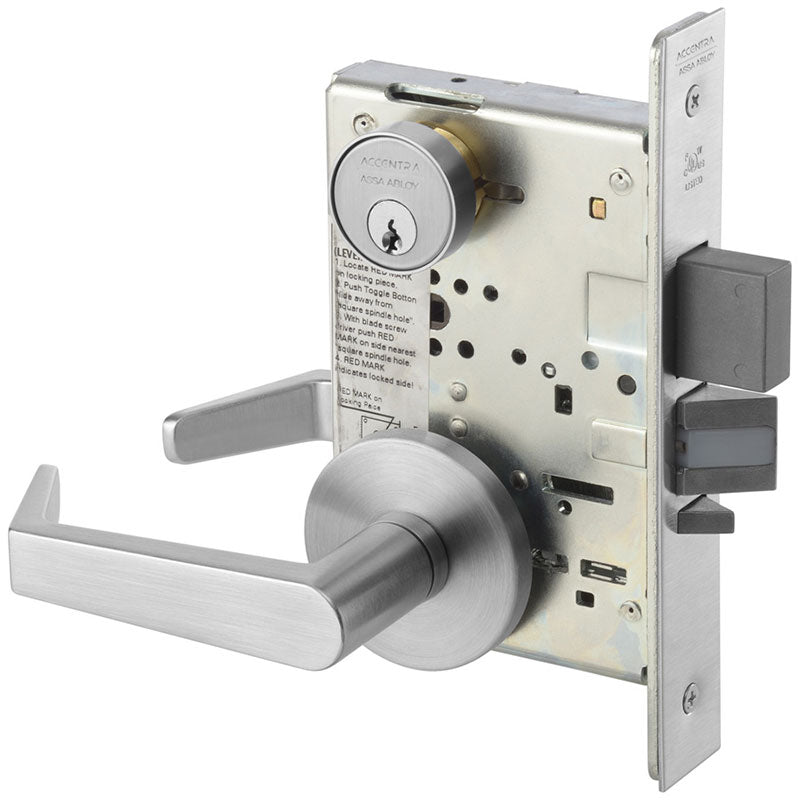

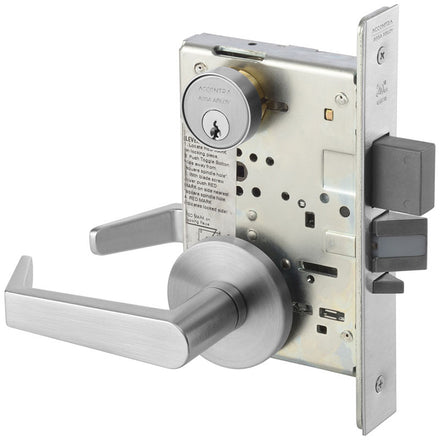

Accentra (Formerly Yale) AUR 8818-2FL Classroom Security Intruder Mortise Lock with Augusta Lever, Standard Rose

$395.95
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • Classroom Security Intruder Lock
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

Accentra (formerly Yale) AUR8818-2FL ANSI/BHMA Grade 1 Certified Mortise Lock, Classroom Security Intruder Function, Sectional Augusta AUR Lever/Rose Trim


Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

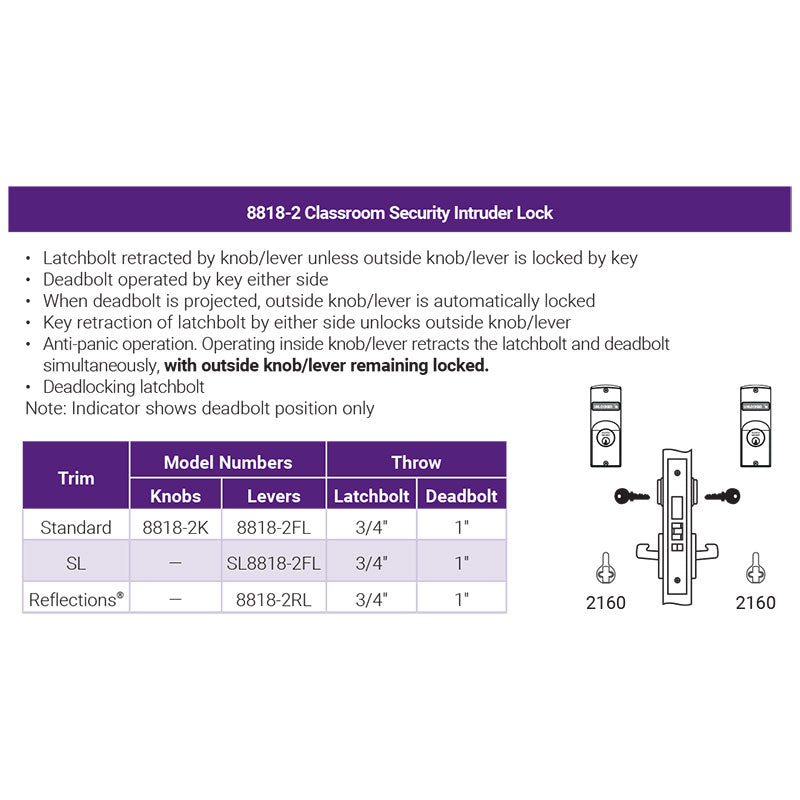

Classroom Security Intruder Lock

  • Latchbolt retracted by knob/lever unless outside knob/lever is locked by key
  • Deadbolt operated by key either side
  • When deadbolt is projected, outside knob/lever is automatically locked
  • Key retraction of latchbolt by either side unlocks outside knob/lever
  • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, with outside knob/lever remaining locked.
  • Deadlocking latchbolt

Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing
codes
Brand

Accentra (Formerly Yale)
Finishes

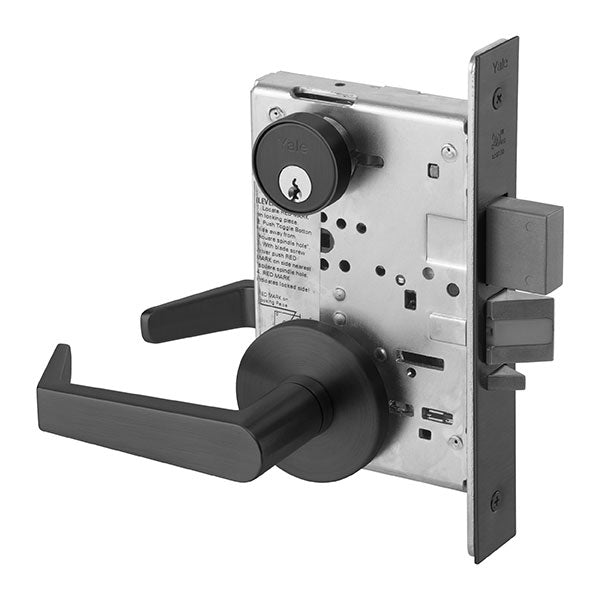

613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Classroom Security, Intruder
ANSI Function

F34
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"

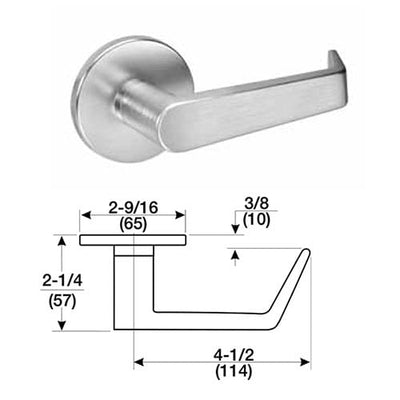

Lever Design

AUR (Augusta)
Warranty

10 Years
