Accentra (Formerly Yale)

Accentra (Formerly Yale) AUR 8820FL Hotel Guest Mortise Lock with Augusta Lever, Standard Rose

$402.36
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI Function: F15 – Hotel Guest Lock
  • Includes CIND Indicator

Available Options:

Clear

Product Overview

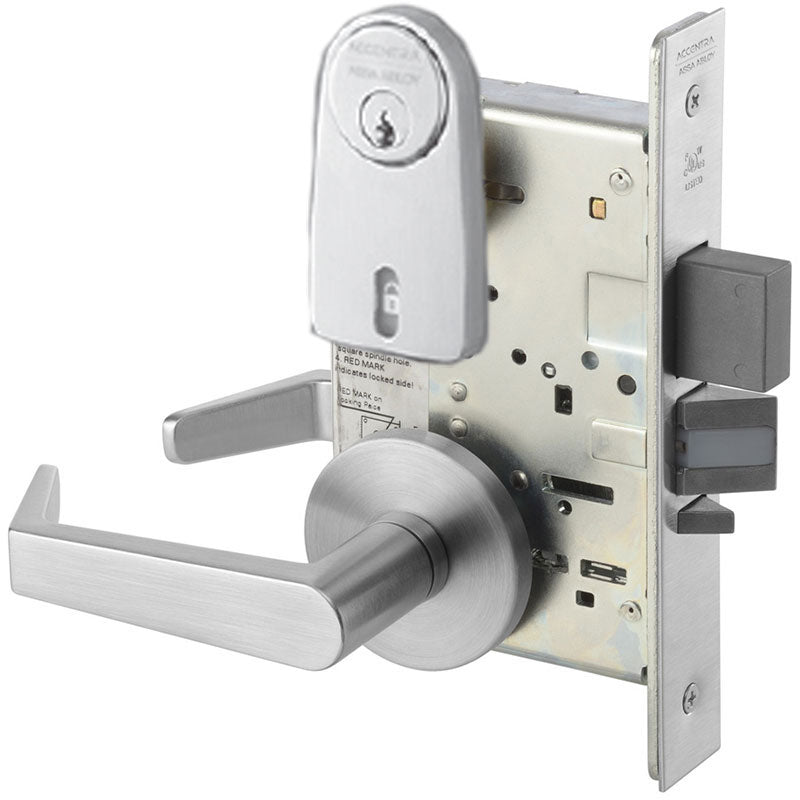

Accentra (formerly Yale) AUR8820FL ANSI/BHMA Grade 1 Certified Mortise Lock, Hotel Guest Function, Sectional Augusta AUR Lever/Rose Trim


Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

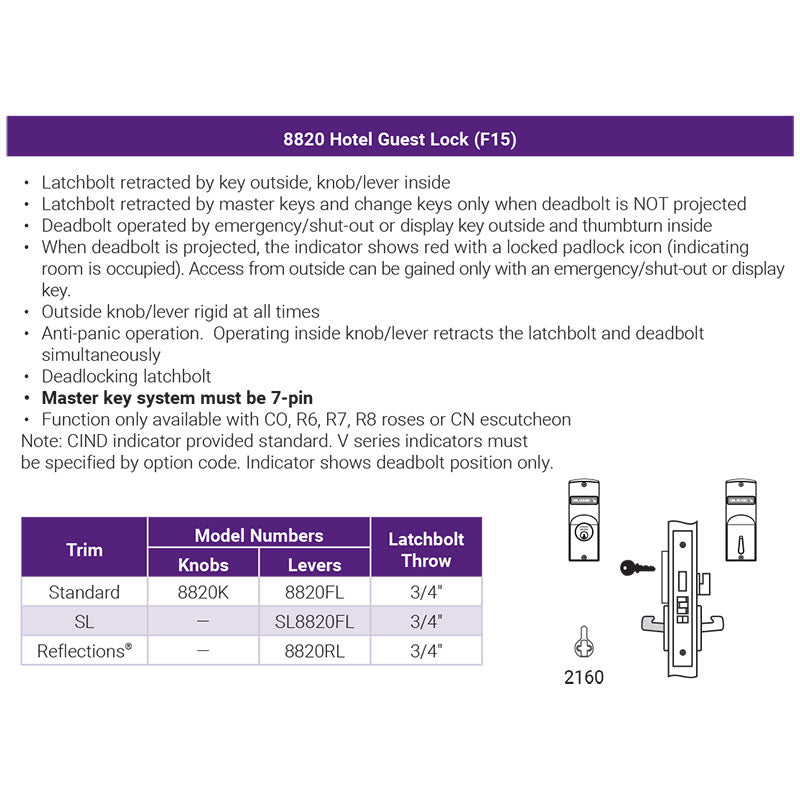

ANSI Function: F15 - Hotel Guest Lock

  • Latchbolt retracted by key outside, knob/lever inside
  • Latchbolt retracted by master keys and change keys only when deadbolt is NOT projected
  • Deadbolt operated by emergency/shut-out or display key outside and thumbturn inside

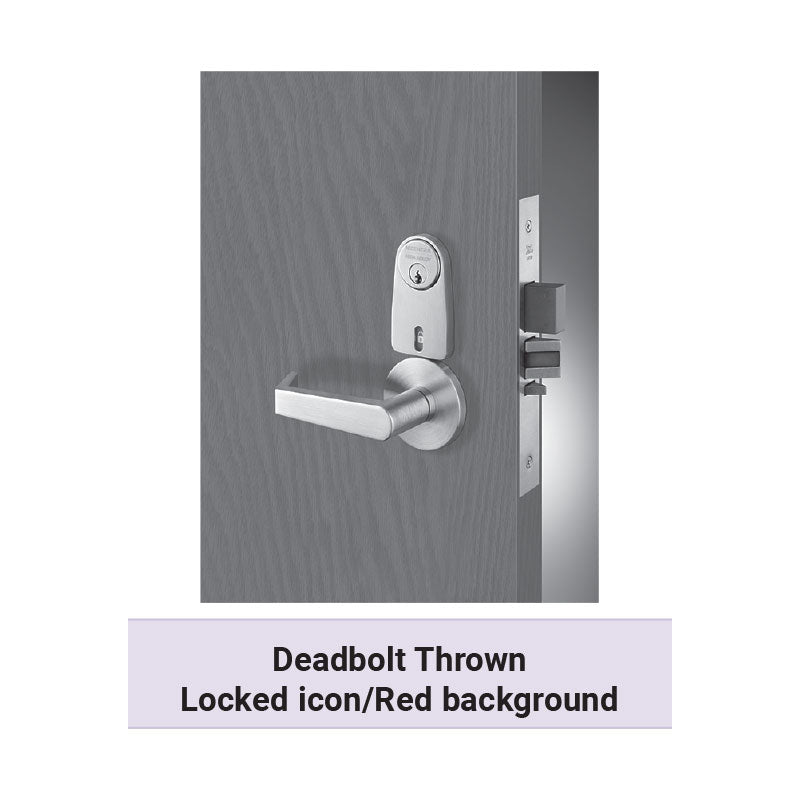

  • When deadbolt is projected, the indicator shows red with a locked padlock icon (indicating room is occupied). Access from outside can be gained only with an emergency/shut-out or display key.
  • Outside knob/lever rigid at all times
  • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously
  • Deadlocking latchbolt
  • Master key system must be 7-pin
Note: CIND indicator provided standard. V series indicators must be specified by option code. Indicator shows deadbolt position only

Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing
codes
Brand

Accentra (Formerly Yale)
Finishes

613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Hotel Guest
ANSI Function

F15
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"

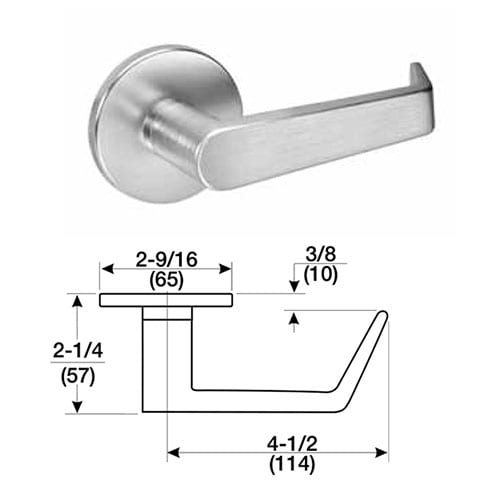

Lever Design

AUR (Augusta)
Warranty

10 Years
