Accentra (Formerly Yale) AUR 8827FL Hotel/Motel Mortise Lock with Augusta Lever, Standard Rose

$402.36
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • Hotel/Motel Lock
  • Includes CIND Indicator

Available Options:

Clear

Product Overview

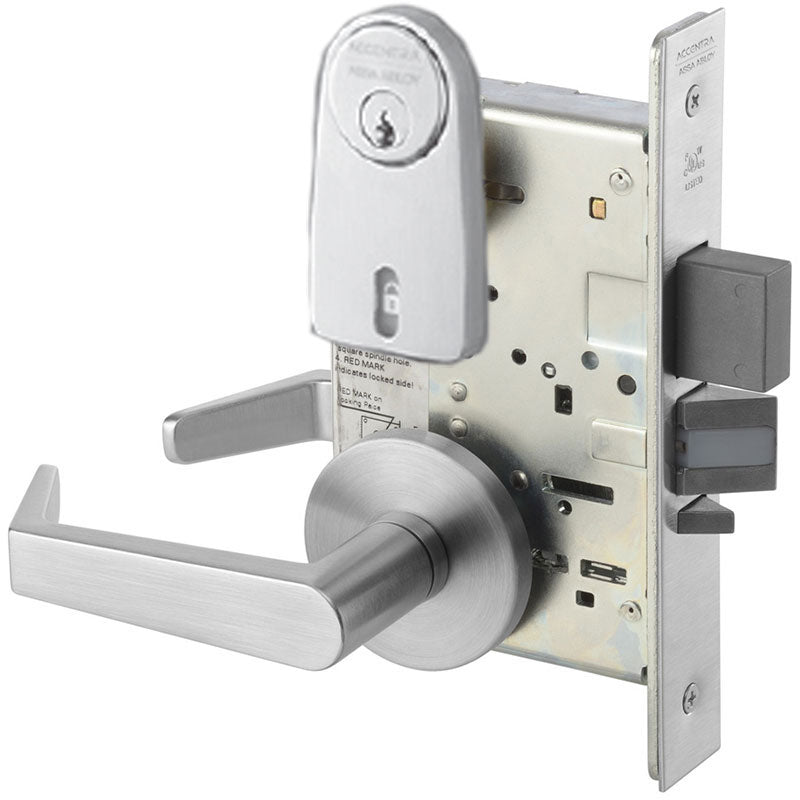

Accentra (formerly Yale) AUR8827FL ANSI/BHMA Grade 1 Certified Mortise Lock, Hotel/Motel Function, Sectional Augusta AUR Lever/Rose Trim


Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

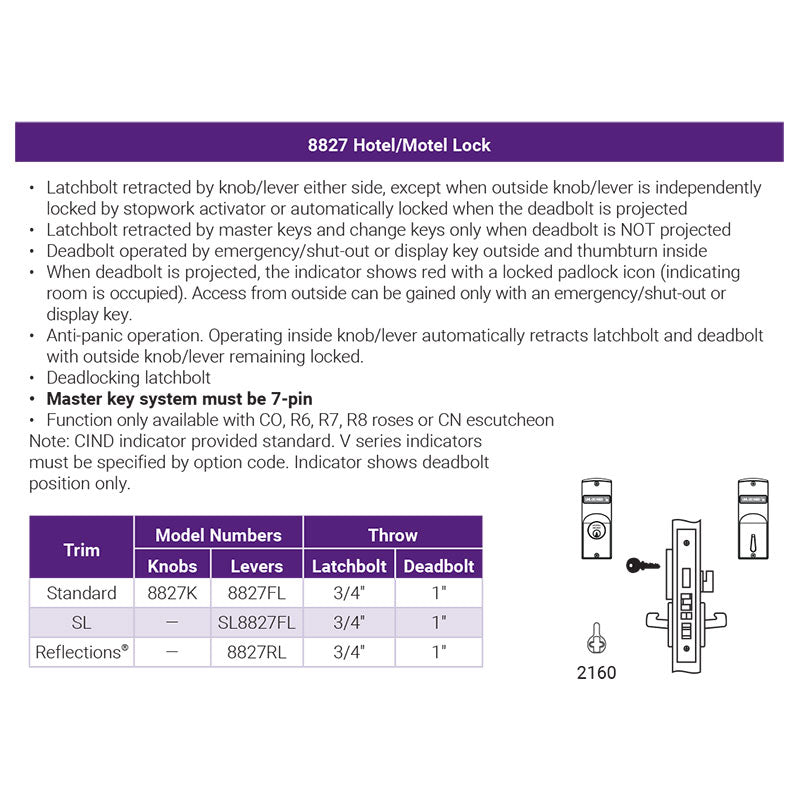

Hotel/Motel Lock

  • Latchbolt retracted by knob/lever either side, except when outside knob/lever is independently locked by stopwork activator or automatically locked when the deadbolt is projected
  • Latchbolt retracted by master keys and change keys only when deadbolt is NOT projected
  • Deadbolt operated by emergency/shut-out or display key outside and thumbturn inside

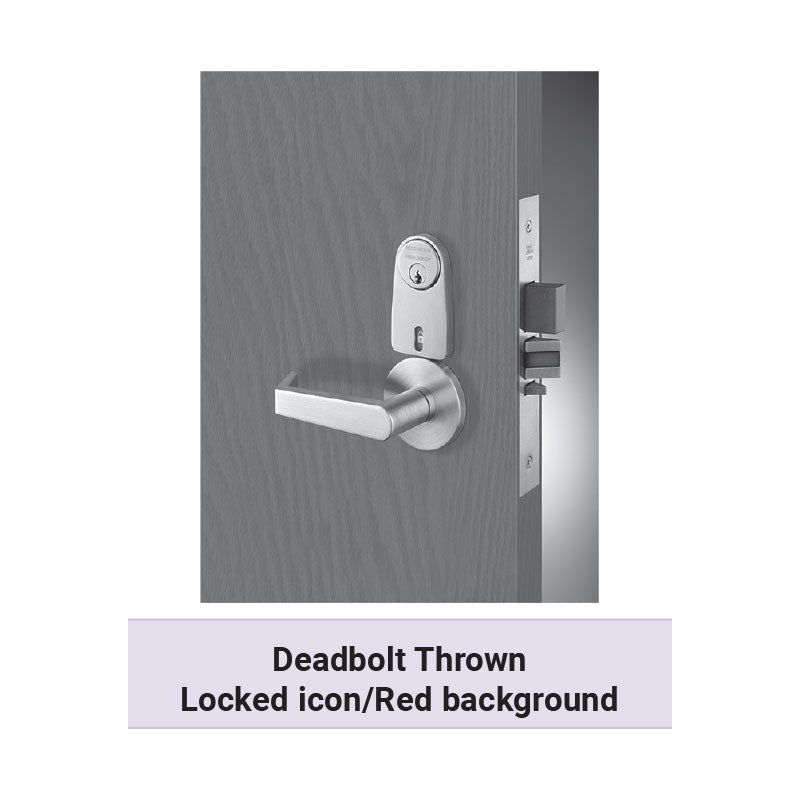

  • When deadbolt is projected, the indicator shows red with a locked padlock icon (indicating room is occupied). Access from outside can be gained only with an emergency/shut-out or display key.
  • Anti-panic operation. Operating inside knob/lever automatically retracts latchbolt and deadbolt with outside knob/lever remaining locked.
  • Deadlocking latchbolt
  • Master key system must be 7-pin
Note: CIND indicator provided standard. V series indicators must be specified by option code. Indicator shows deadbolt position only

Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing
codes
Brand

Accentra (Formerly Yale)
Finishes

613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Hotel/Motel
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"

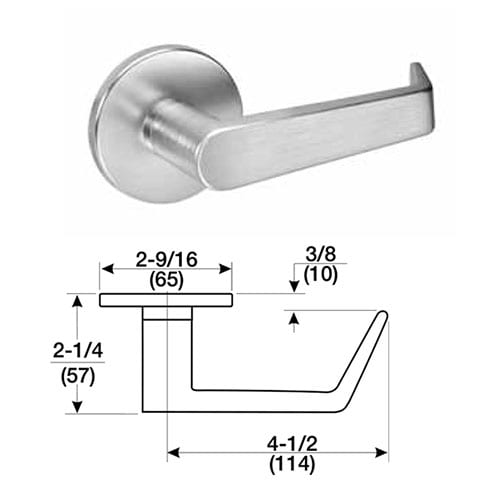

Lever Design

AUR (Augusta)
Warranty

10 Years
