Accentra (Formerly Yale) AUR 8828FL Exit or Communicating Mortise Lock, Augusta Lever, Standard Rose

$306.76
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI function: F31 - Exit or Communicating
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

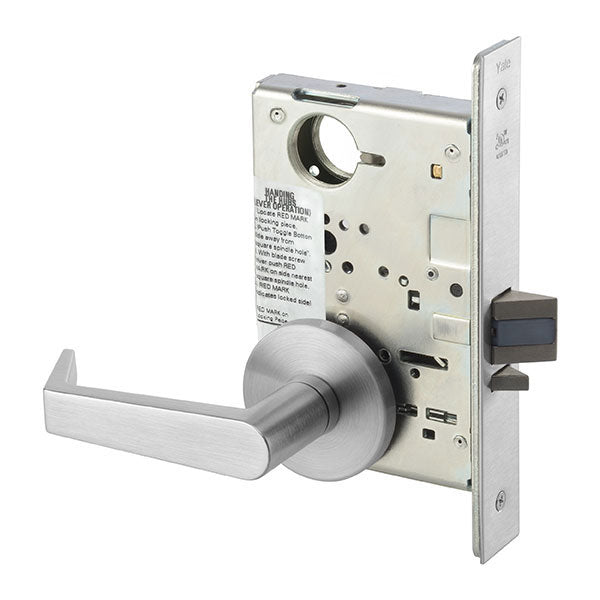

Accentra (formerly Yale) AUR8828FL ANSI/BHMA Grade 1 Certified Mortise Lock, Exit or Communicating Function, Sectional Augusta AUR Lever/Rose Trim


Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

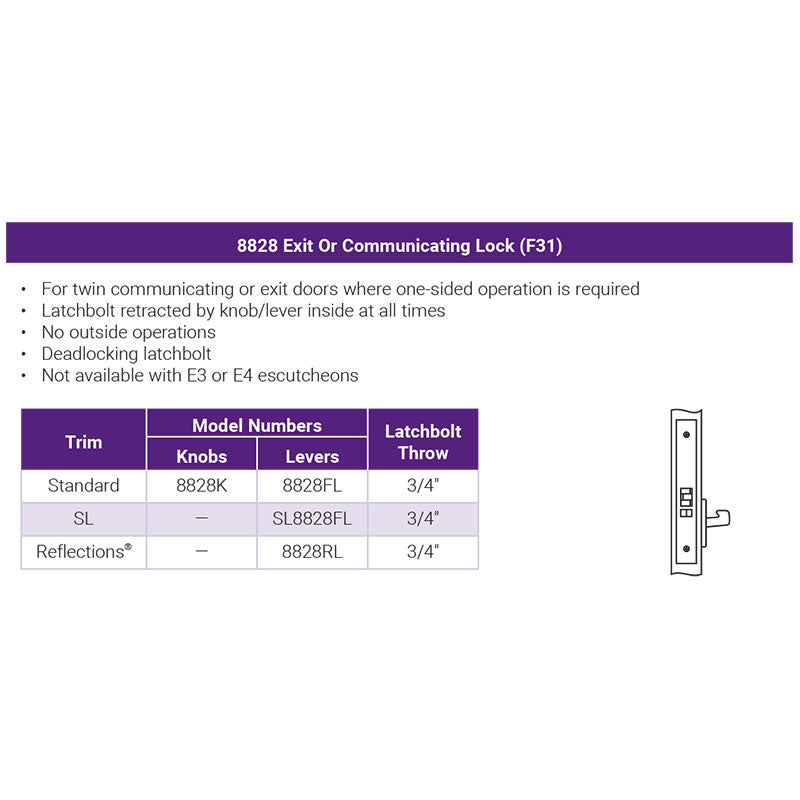

ANSI Function: F31 - Exit or Communicating
  • For twin communicating or exit doors where one-sided operation is required
  • Latchbolt retracted by knob/lever inside at all times
  • No outside operations
  • Deadlocking latchbolt
  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing
codes
Brand

Accentra (Formerly Yale)
Finishes

605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Exit / Communicating
ANSI Function

F31
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"

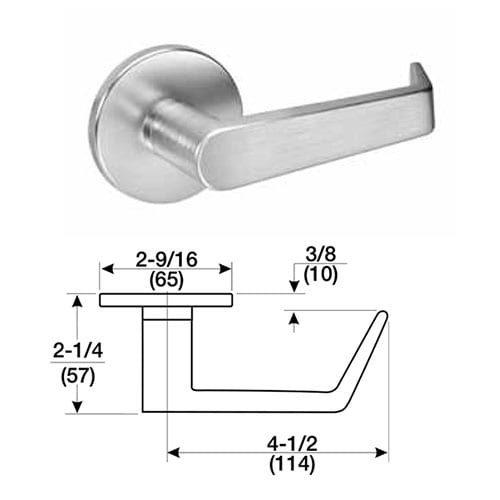

Lever Design

AUR (Augusta)
Warranty

10 Years
