Accentra (Formerly Yale)

Accentra (Formerly Yale) AUR 8860-2FL Store Door Mortise Lock with Augusta Lever, Standard Rose

$395.95
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI Function: F14 – Store Door Lock
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

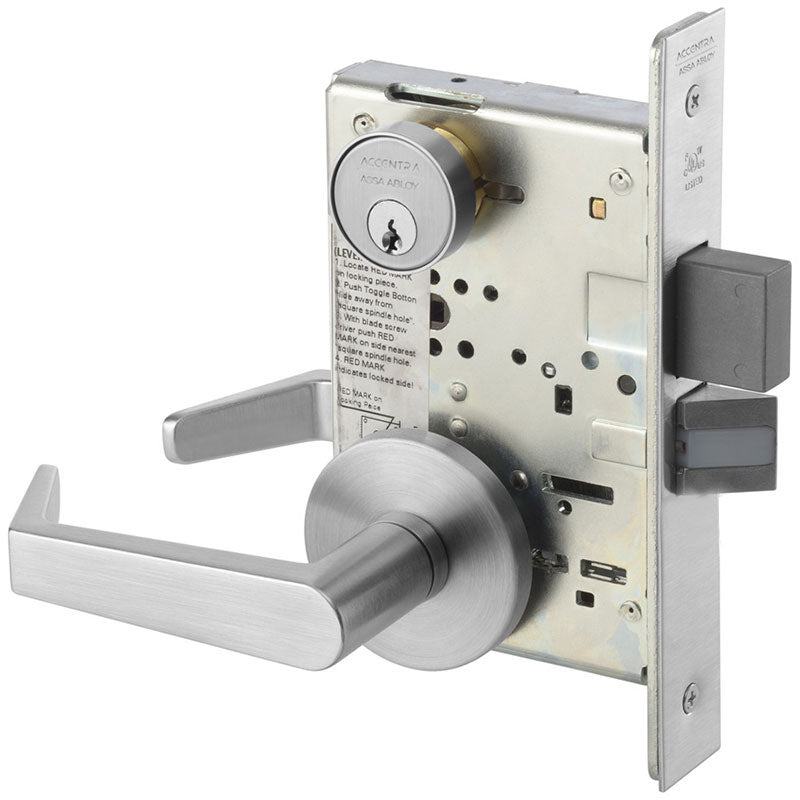

Accentra (formerly Yale) AUR8860-2FL ANSI/BHMA Grade 1 Certified Mortise Lock, Store Door Function, Sectional Augusta AUR Lever/Rose Trim


Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

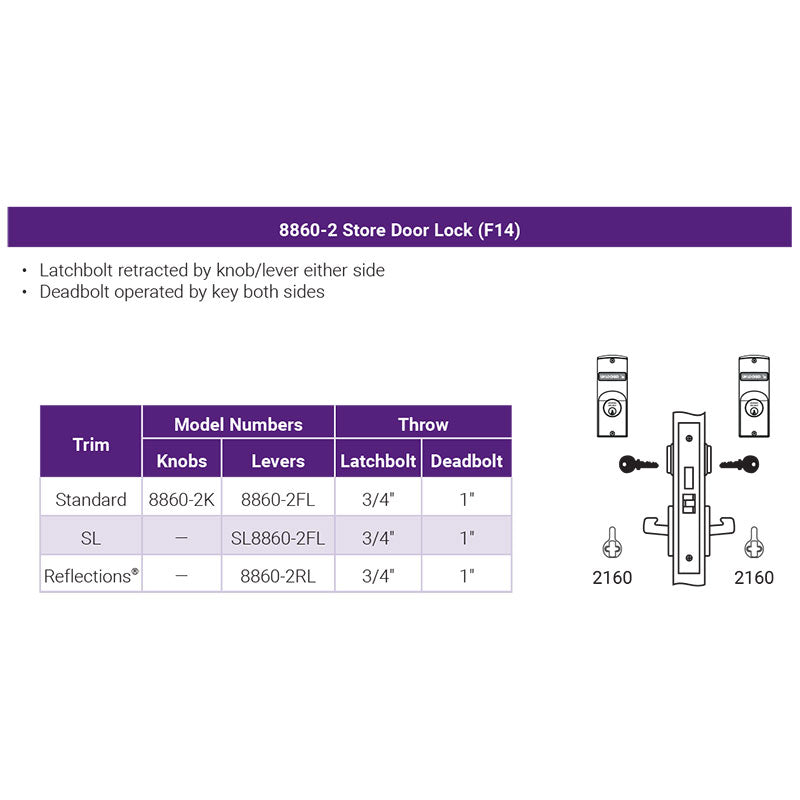

ANSI F14 – Store Door Lock
  • Latchbolt retracted by knob/lever either side
  • Deadbolt operated by key both sides

Require 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing
codes
Brand

Accentra (Formerly Yale)
Finishes

613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Store
ANSI Function

F14
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Deadbolt

Stainless steel, 1” throw
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"
Lever Design

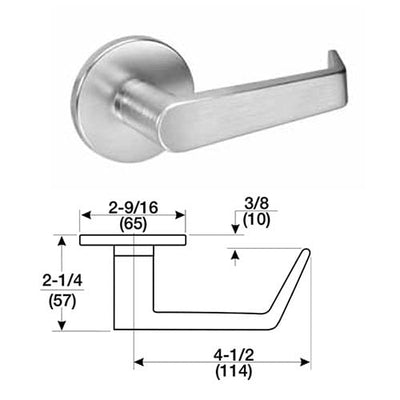

AUR (Augusta)
Warranty

10 Years
