Accentra (Formerly Yale)

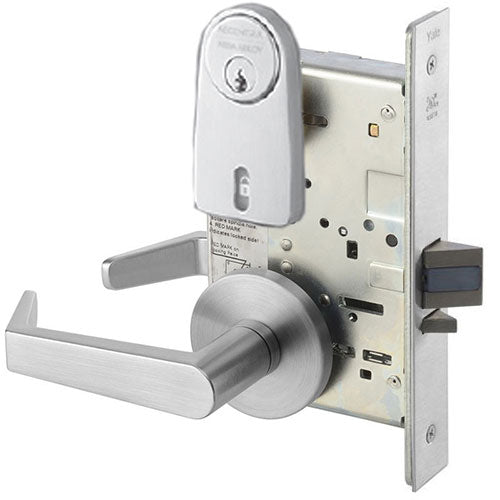

Accentra (Formerly Yale) AUR 8864FL Bathroom Mortise Lock with Indicator, Augusta Lever, Standard Rose

$419.59
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • Bathroom Mortise Lock
  • Includes CIND Indicator

Available Options:

Clear

Product Overview

Accentra (formerly Yale) AUR8864FL ANSI/BHMA Grade 1 Certified Mortise Lock, Bathroom Mortise Lock with Indicator, Sectional Augusta AUR Lever/Rose Trim


Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

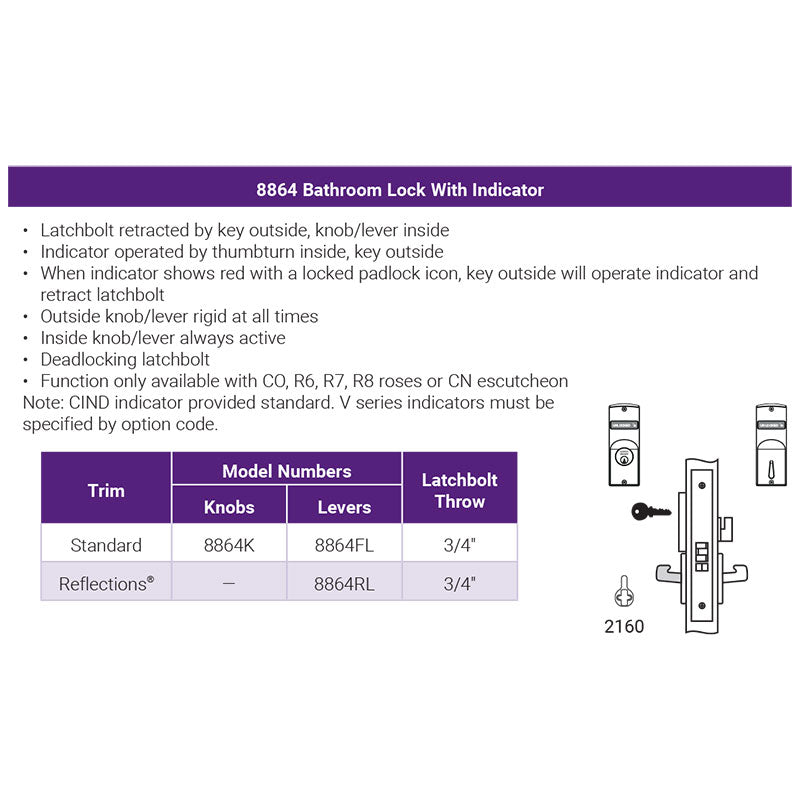

Bathroom Mortise Lock with Indicator
  • Latchbolt retracted by key outside, knob/lever inside
  • Indicator operated by thumbturn inside, key outside
  • When indicator shows red with a locked padlock icon, key outside will operate indicator and retract latchbolt
  • Outside knob/lever rigid at all times
  • Inside knob/lever always active
  • Deadlocking latchbolt
Note: CIND indicator provided standard. V series indicators must be specified by option code. Indicator shows deadbolt position only

Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing
codes
Brand

Accentra (Formerly Yale)
Finishes

613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Privacy with Indicator
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"

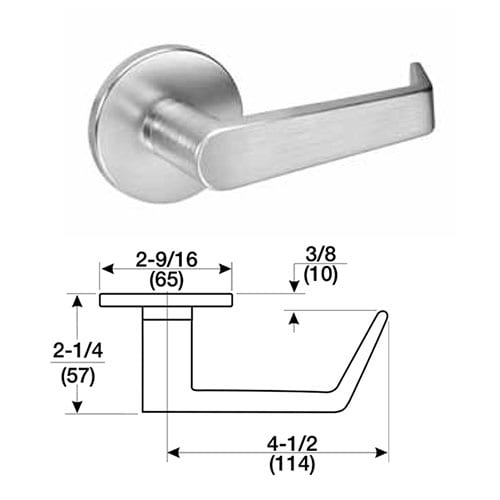

Lever Design

AUR (Augusta)
Warranty

10 Years
