Product Overview

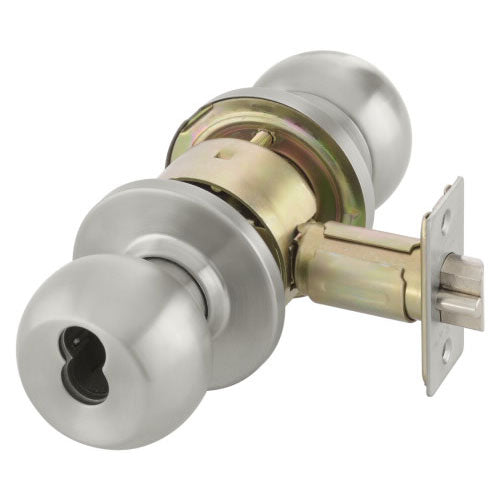

Accentra (formerly Yale) BCA4607 ANSI/BHMA Grade 2 Certified Cylindrical Lock Prepped for SFIC Interchangeable Core, Entry Function, Carolina Knob, Satin Stainless Steel Finish

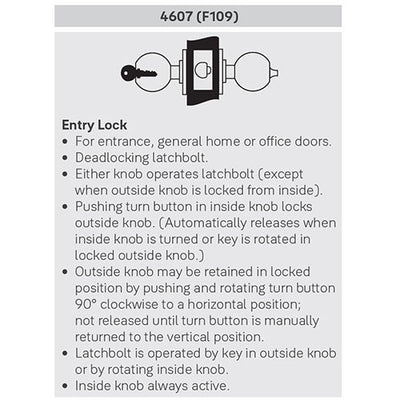

ANSI Function F109 – For entrance, general home or office doors. Deadlocking latchbolt. Either knob operates latchbolt (except when outside knob is locked from inside). Pushing turn button in inside knob locks outside knob. (Automatically releases when inside knob is turned or key is rotated in locked outside knob.) Outside knob may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position. Latchbolt is operated by key in outside knob or by rotating inside knob. Inside knob always active.
SFIC = Small Size Interchangeable Core (less core – sold separately)
- Versatile: Field reversible handing and other product options offer flexibility in many commercial applications
- Economical: Priced affordably to suit projects of all budgets
- Secure: Quality security from a trusted brand for over 170 years
- Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability
| ANSI/BHMA Standard |
Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000 Grade 2 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Accentra (Formerly Yale) |
| Cylinder |
Less Interchangeable Core |
| Cylinder Format |
Small Format Interchangeable Core (SFIC) |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Stainless Steel |
| Finishes |
630 Satin Stainless Steel |
| Fire Rating |
UL-cUL fire rated up to 3 hours |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Entry (Entrance) |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Medium Duty |
