Adams Rite 8800MLR Narrow Stile Rim Exit Device with Motorized Latch Retraction for Aluminum Doors

$754.91

This item ships FREE! Usually Ships: 3-5 Business Days

For aluminum doors (minimum 2" stile)
Patented “Starwheel” bolt interlocks door to frame
Incorporates a powerful and efficient motor to unlatch the exit device

Available Options:

Clear

Finish
Length

Quantity:

Added to Cart

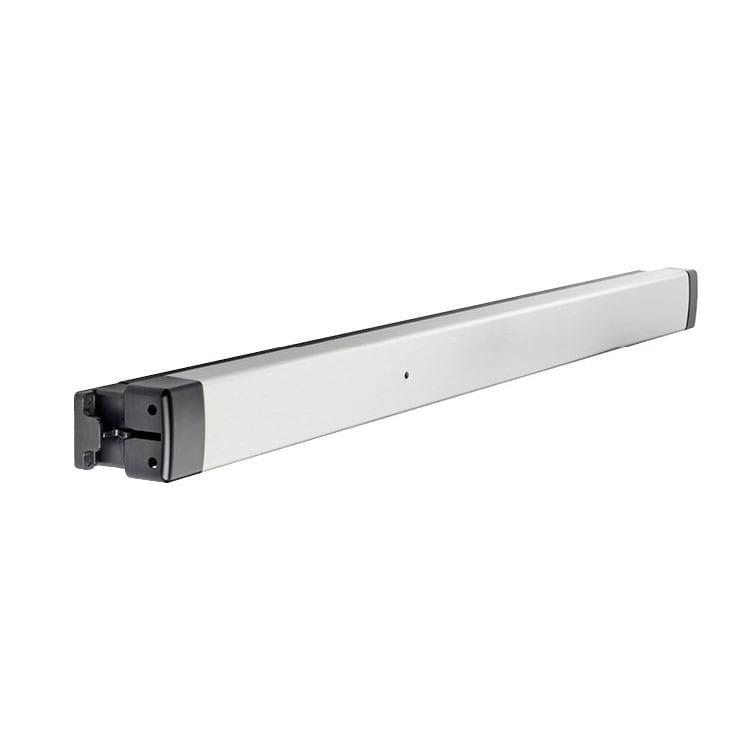

Adams Rite 8800MLR Series (Life-Safety) Narrow Stile Starwheel Rim Exit Device, Motorized Latch Retraction

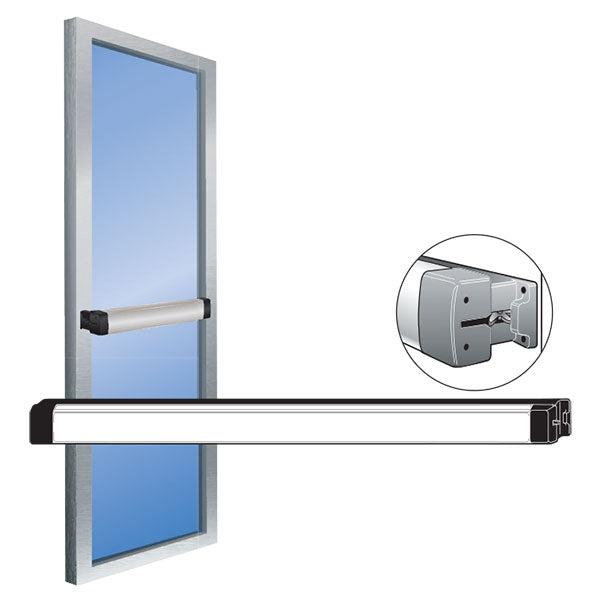

This Adams Rite 8800 rim exit device is for aluminum stile glass storefront doors. A patented "Starwheel" bolt interlocks the door to the frame. The 8800 offers an unobtrusive design for clean sight lines. Designed for use in applications with single doors or pairs of doors with a mullion.

The Motorized Latch Retraction (MLR) option incorporates a powerful and efficient motor to unlatch the exit device. Motor-powered latch retraction provides a quieter operation than solenoid options. Adams Rite recommends that for optimal performance all exit devices with MLR option be paired with PS-EXIT Power Supplies.

Factory calibrated with optional field calibration
Audible chirps for calibration confirmation and bar binding
Robust linkage mechanism for extended operation
Motor-driven latch and bar retraction
850 mA during retraction and 370 mA maintained in dogged hold position at 24VDC
MLR option available only in standard 24VDC; Requires 2 A at 24VDC regulated/filtered power supply
Continuous or intermittent use
Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
Compatible with REX monitoring
Adams Rite recommends that for optimal performance all exit devices with MLR option be paired with PS-EXIT Power Supplies.

Patented “Starwheel" bolt interlocks door to frame
Strong, durable construction for a high level of security
Unobtrusive design for clean sight lines
ANSI/BHMA A156.3, Grade 1
UL Listed UL 305 Panic Hardware
Standard sizes: dimensioned for 36" 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.
Available in Aluminum (8801), Dark Bronze (8802), and Black (8803)

ANSI Grade	ANSI/BHMA A156.31 Grade 1
Brand	Adams Rite
Dogging Feature	No Manual Dogging - Electric Latch Retraction
Door Applications	1-3/4" Aluminum Doors
Fasteners	Standard self-tapping screws
Finish	Dark BronzeAnodized AluminumBlack
Finishes	628 Anodized Aluminum335 Black Anodized313 Duranodic Dark Bronze
Fire Rating	Non-Fire-Rated
Handing	Non-Handed
Length	36"42"48"
Projections	2-5/8" when fully projected 1-5/8" when dogged
Stile	Minimum 2" Stile. Fits narrow medium and wide stile aluminum doors
Stile Type	Narrow
Strike	Standard strike and narrow versions for centering doors in 4"jamb (both strikes included)
Usage	Medium Duty
