Product Overview

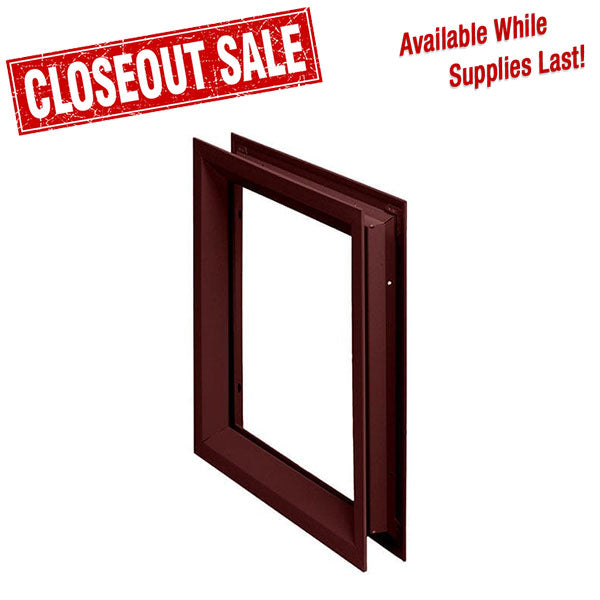

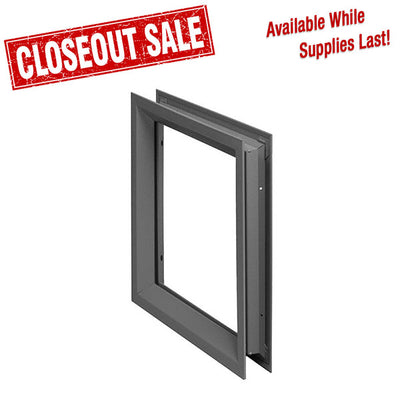

784G Lite Kit Frame for 1-3/4" Thick Doors and 3/16", 1/4" or 5/16" Glass
Closeout Sale - Available while supplies last (No returns allowed)

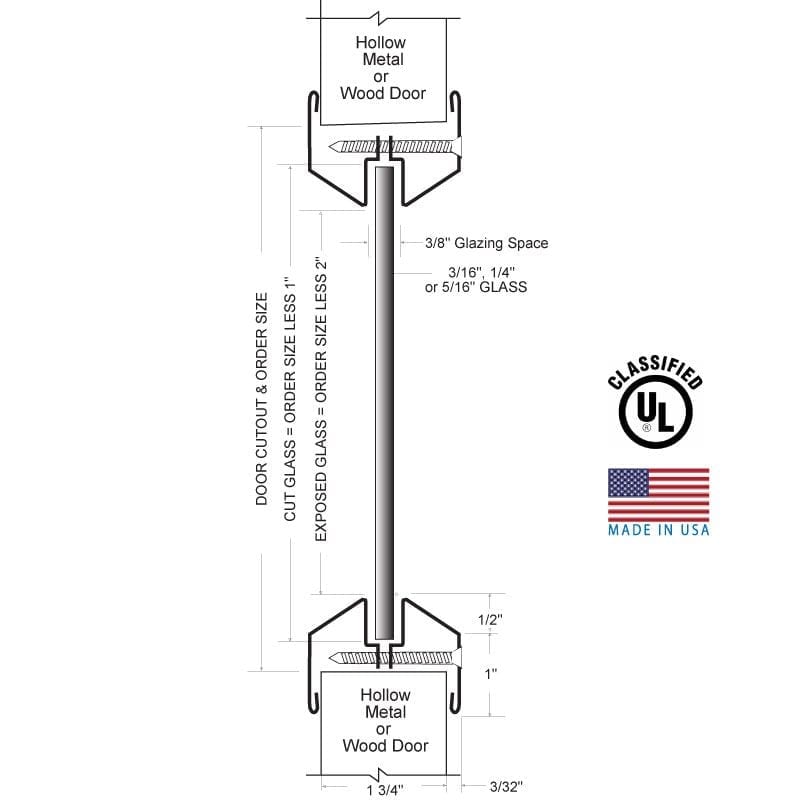

- Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
- Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
| Brand |
Advantage |
|---|---|
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Door Thickness |
1-3/4" |
| Finish |
Dark BronzeGray Primed |
| Fire Rating |
UL Certified - Up to 3 Hours in Metal Doors and 90 Minutes in Wood Doors |
| Frame Construction |
18 Ga. Galvanneal A40 steel |
| Frame Fasteners |
#8 x 1" Flathead Phillips SMS - Included |
| Frame Profile |
Low |
| Glass Thickness |
3/16" 1/4" or 5/16" |
| Order Size |
18" x 24"24" x 24"6" x 60"5" x 35"18" x 60"6" x 56" |
