Air Louvers 1100A Adjustable Z Blade Louver

$242.52
Usually Ships:  20-30 Business Days
  • 16 gauge CRS frame and louver
  • Manually-adjustable on interior face
  • Free flow area 45%

Available Options:

Clear

Product Overview

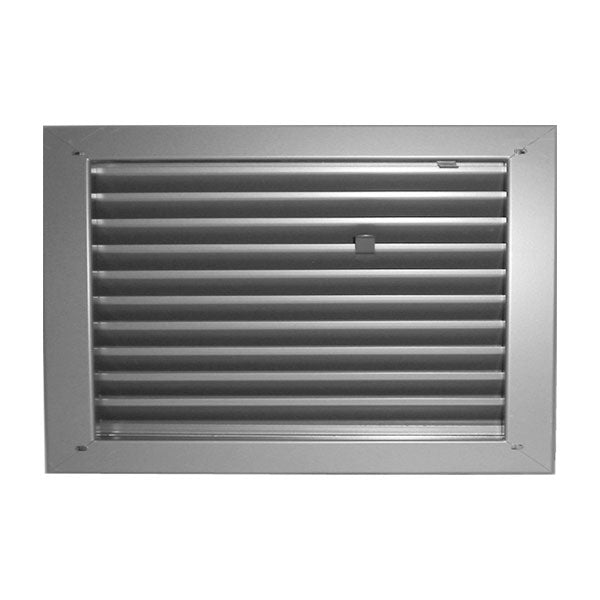

Manually-operated adjustable Z blade louver for 1-3/8" to 1-3/4" thick doors

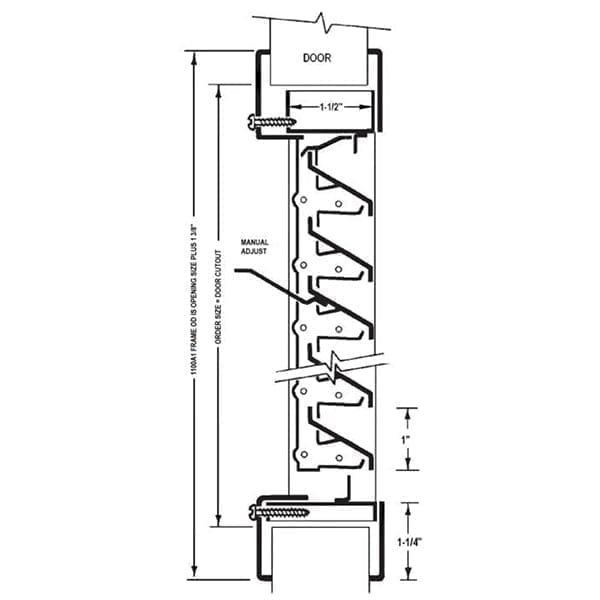

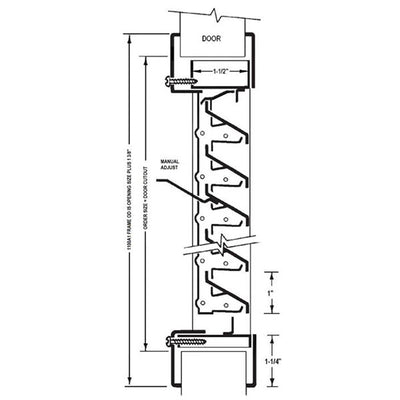

  • Z-blades riveted to operating bar and frame at 1” intervals in 1-1/2” deep welded frame. Mechanical stop holds blades open.
  • Mitered and welded corners; screws fastened through prepared frame into louver core leaving corridor side of frame free of fasteners
  • Manually-adjustable on interior face
  • Designed for use with 1-3/8" to 1-3/4″ thick doors
  • Order size is equal to door cutout size





Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Construction

16 gauge CRS frame and louver
Door Thickness

1-3/8" to 1-3/4"
Fasteners

#8 x 3/4" Flathead Phillips SMS - Included
Finish

Mineral BronzeGray
Finishes

Gray (G)Mineral Bronze (B)
Free Flow Area

45% Free Area
Material

Cold Rolled Steel
Size

24" x 18"18" x 12"24" x 12"12" x 12"24" x 24"18" x 18"
