Product Overview
Inverted “V” blade self-attaching louver for 1-3/4" thick doors

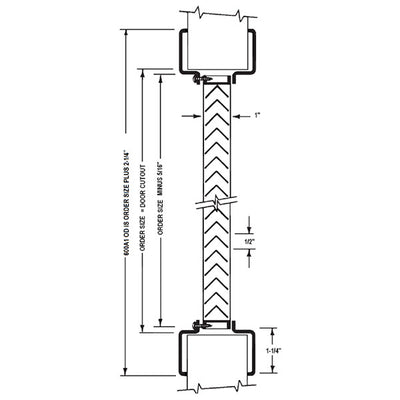

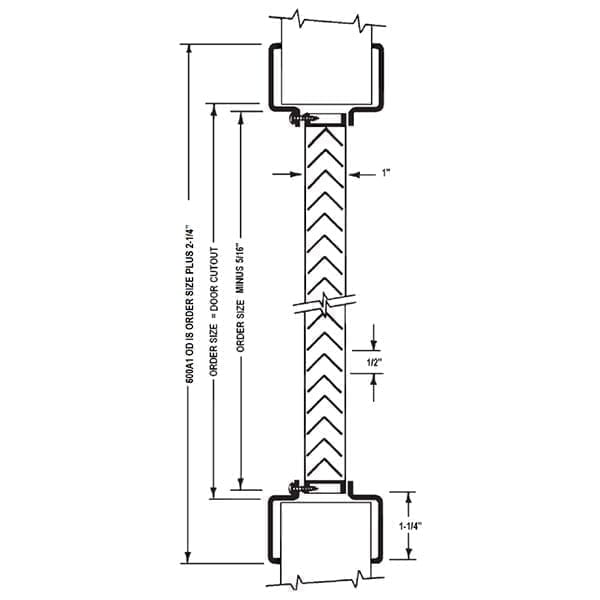

600A1 Frame: Self-attaching frame with 1-1/4" trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners.
- Inverted "V" blades with 1/2" blade spacing are attached by interlocking construction to a 1" deep, welded frame
- Single side mounting for non-corridor exposure with fastening screws included
- Designed for use with 1-3/4" doors only
- Order size is equal to door cutout size
Finishes
- Gray (G)
- Mineral Bronze (B)
Custom features at additional cost and lead time (4-5 Weeks): Custom sizes up to 24" x 72" and special powder coat colors (White, Black, Beige, Red, Sand, Silver).
Please call 1-844-TRUDOOR to order custom louvers
| Brand |
Air Louvers |
|---|---|
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Door Thickness |
1-3/4" |
| Fasteners |
Phillips head screws #8 x 3/4" - Included |
| Finish |
Mineral BronzeGray |
| Finishes |
Gray (G)Mineral Bronze (B) |
| Fire Rating |
None |
| Free Flow Area |
60% Free Area |
| Material |
Cold Rolled Steel |
| Size |
24" x 18"18" x 12"12" x 12"24" x 60"24" x 12"24" x 24"18" x 18"24" x 64" |
| Warranty |
5 Year |

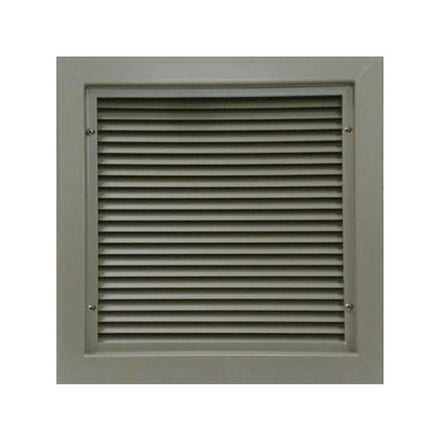

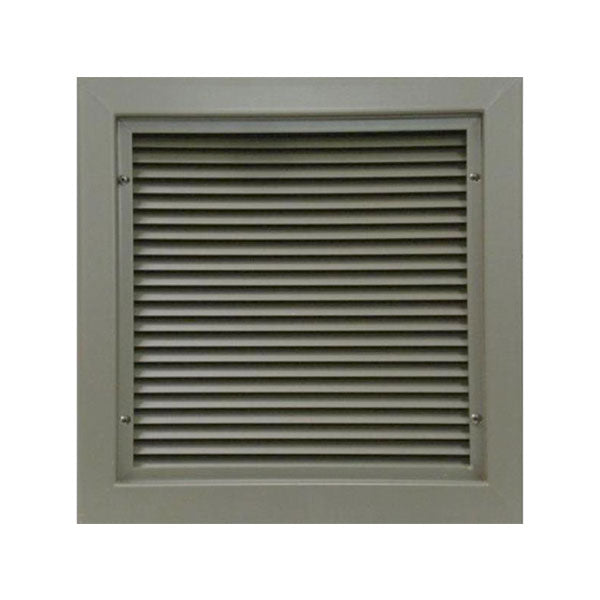

Air Louvers 600A1 Louver with Inverted V Blades
