Air Louvers

Air Louvers 800A1 Louver with Framed Fiberglass Insect Screen

$90.30
Usually Ships:  20-30 Business Days
  • 18-Gauge Steel Frame w/ 20-Gauge Y Blades
  • Includes Framed Fiberglass Mesh Insect Screen
  • Self-Attaching, Vandal-Proof Design

Available Options:

Clear

Product Overview

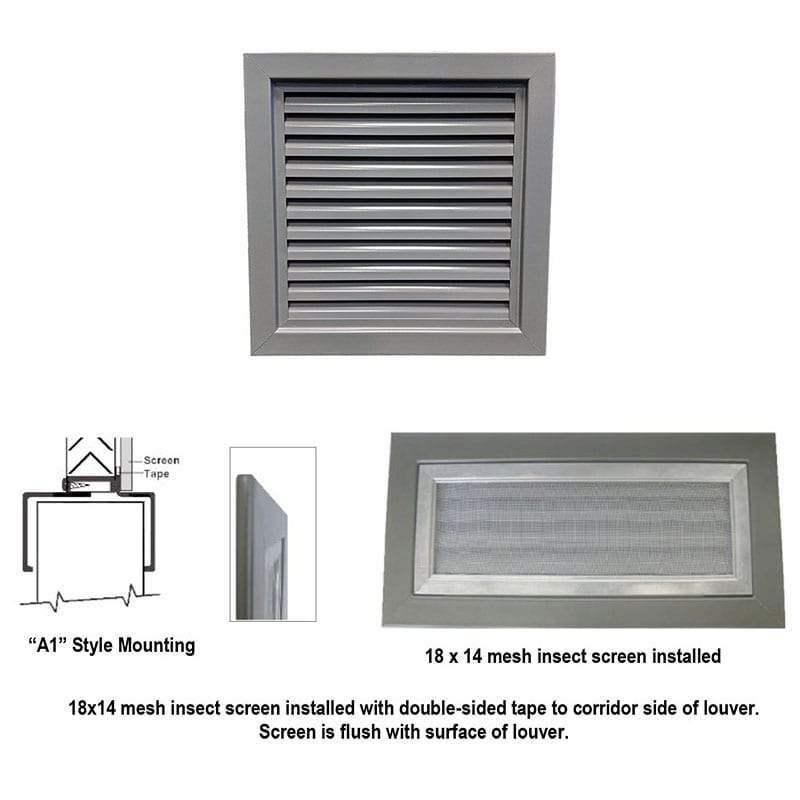

Steel Y blade louver with framed fiberglass insect screen

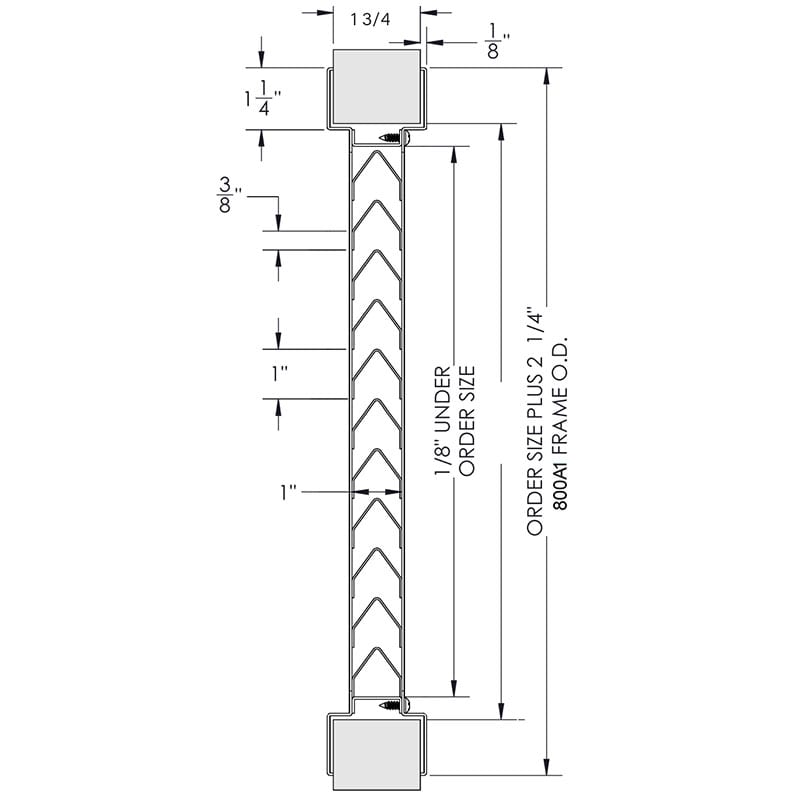

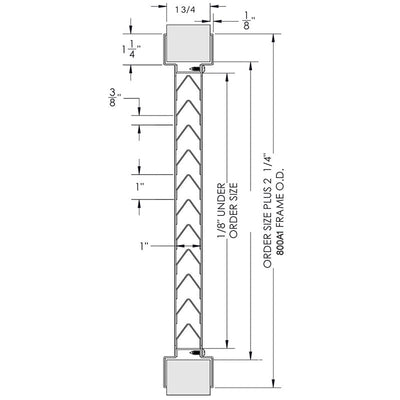

800A1 Frame: Self-attaching frame with 1-1/4" trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners.

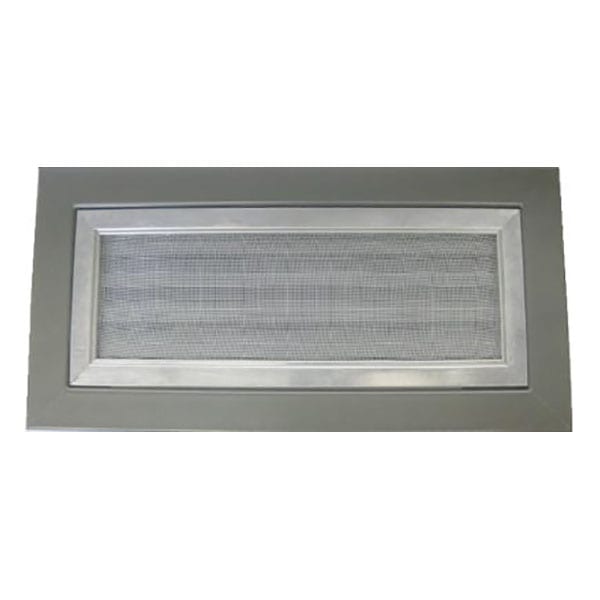

  • Includes framed fiberglass insect screen - Screen is flush with surface of louver
  • Reverse "Y" blades are frame supported at 1" increments, with blocked vision design
  • Self-attaching, vandal-proof design
  • Single side mounting for non-corridor exposure with fastening screws included
  • Designed for use with 1-3/4" doors only
  • Order size is equal to door cutout size





Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Fasteners

Phillips head screws #8 x 3/4" - Included
Finish

Mineral BronzeGray
Finishes

Mineral Bronze (B)Gray (G)
Fire Rating

None
Free Flow Area

50% Free Area
Material

Cold Rolled Steel
Size

24" x 12"12" x 12"24" x 60"18" x 18"24" x 24"18" x 12"18" x 60"
Warranty

5 Year
