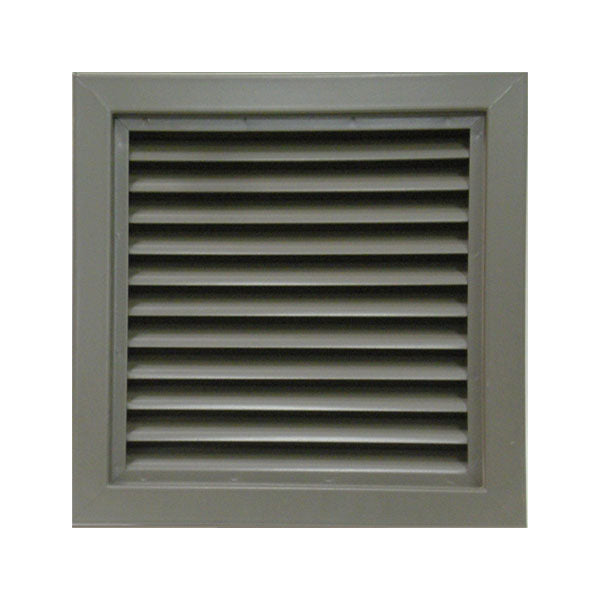

Air Louvers 900A1 Louver with Z Blades

$161.06

Usually Ships: 20-30 Business Days

18-gauge steel frame and Z blades
For use with 1-3/4″ steel or wood doors
Self-attaching design, 43% free area

Available Options:

Clear

Finish
Size

Quantity:

Added to Cart

Standard “Z” blade self-attaching louver for 1-3/4" thick doors

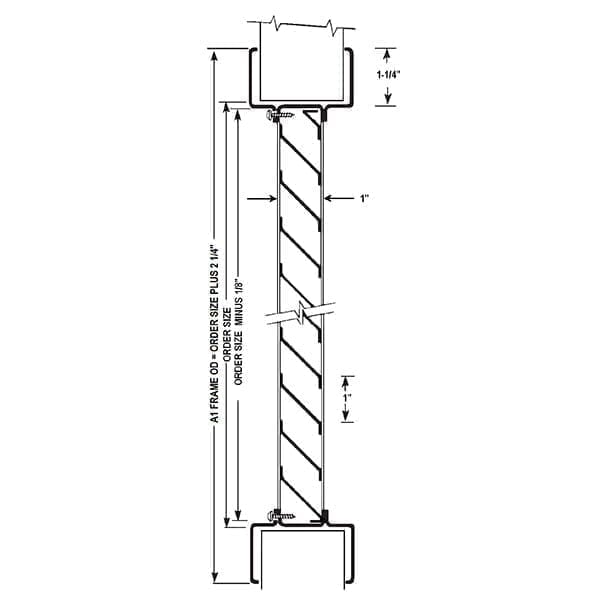

900A1 Frame: Self-attaching frame with 1-1/4" trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners.

“Z” blades with 1” blade spacing are attached by inter-locking construction to the 1” deep, welded frame
Single side mounting for non-corridor exposure with fastening screws included
Designed for use with 1-3/4" doors only
Order size is equal to door cutout size

Finishes

Gray (G)
Mineral Bronze (B)

Custom features at additional cost and lead time (4-5 Weeks): Custom sizes up to 36" x 72" and special powder coat colors (White, Black, Beige, Red, Sand, Silver).

Please call 1-844-TRUDOOR to order custom louvers

Brand	Air Louvers
Buy American Act Compliance	Meets Buy Amercian Act - Made in USA
Door Thickness	1-3/4"
Fasteners	Phillips head screws #8 x 3/4" - Included
Finish	Mineral BronzeGray
Finishes	Gray (G)Mineral Bronze (B)
Fire Rating	None
Free Flow Area	43% Free Area
Material	Cold Rolled Steel
Size	24" x 18"18" x 12"12" x 12"24" x 60"24" x 12"24" x 24"18" x 18"24" x 64"
Warranty	5 Year
