Air Louvers VLF-SG Vision Lite Frame with 12 Gauge Security Grille for 3/16" to 1/4" Glass, 1-3/4" Thick Door

$219.38

Usually Ships: 20-30 Business Days

Available Options:

Finish
Order Size

Quantity:

Added to Cart

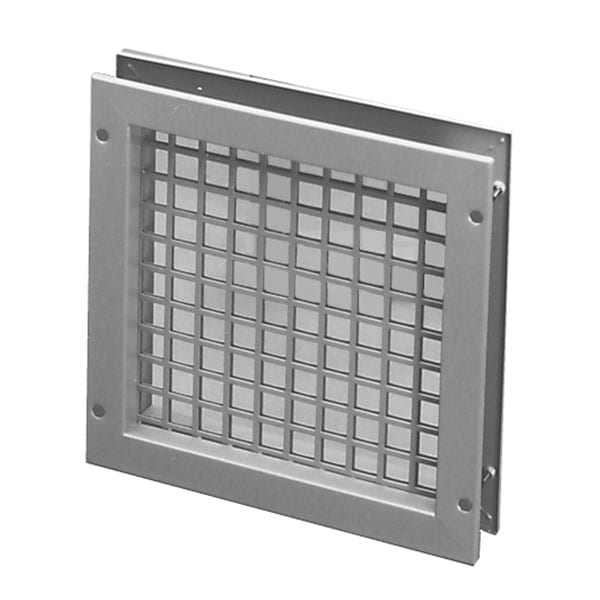

Security vision lite frame with 12-gauge security grille for 3/16" to 1/4" glass, for 1-3/4" thick doors

Mitered and welded corners with countersunk mounting holes
Security grille welded to frame, on each side
Grille: 12 gauge CRS with 13/16" square openings 1" on center
Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
Visible light is 2″ under rough opening size. Glass size is 1″ under order size

This product is made to order and non-returnable or refundable.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

Brand	Air Louvers
Buy American Act Compliance	Meets Buy Amercian Act - Made in USA
Construction	18 Gauge Steel Frame w/ 12 Gauge Security Grille
Door Thickness	1-3/4"
Fasteners	#8-32 Phillips head thu-bolts with blank head one side
Finish	Mineral BronzeGray
Finishes	Gray (G)Mineral Bronze (B)
Frame Fire-Rating	Up to 90 Minutes. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.
Frame Profile	Standard
Glass Thickness	3/16" to 1/4"
Order Size	24" x 36"8" x 32"24" x 64"24" x 32"6" x 27"12" x 12"24" x 60"24" x 30"18" x 18"

VLF-SG
