Product Overview

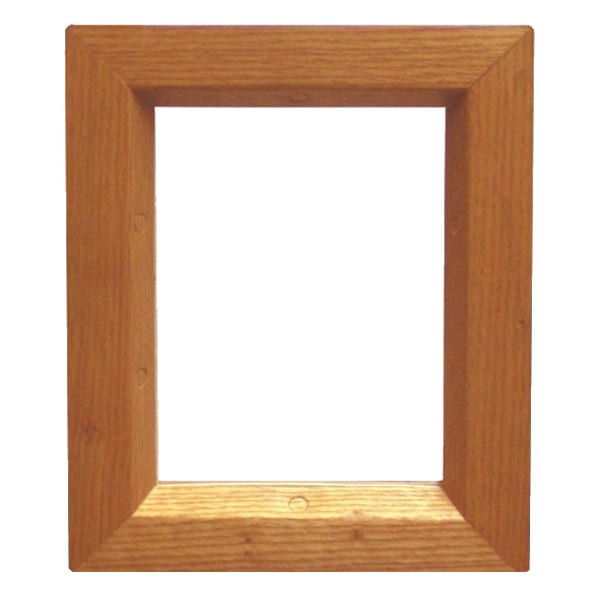

Low profile wood veneer vision lite for 1-3/4" thick doors. Ready to be finished with the surface treatment of your choice. Select from 5 wood types.

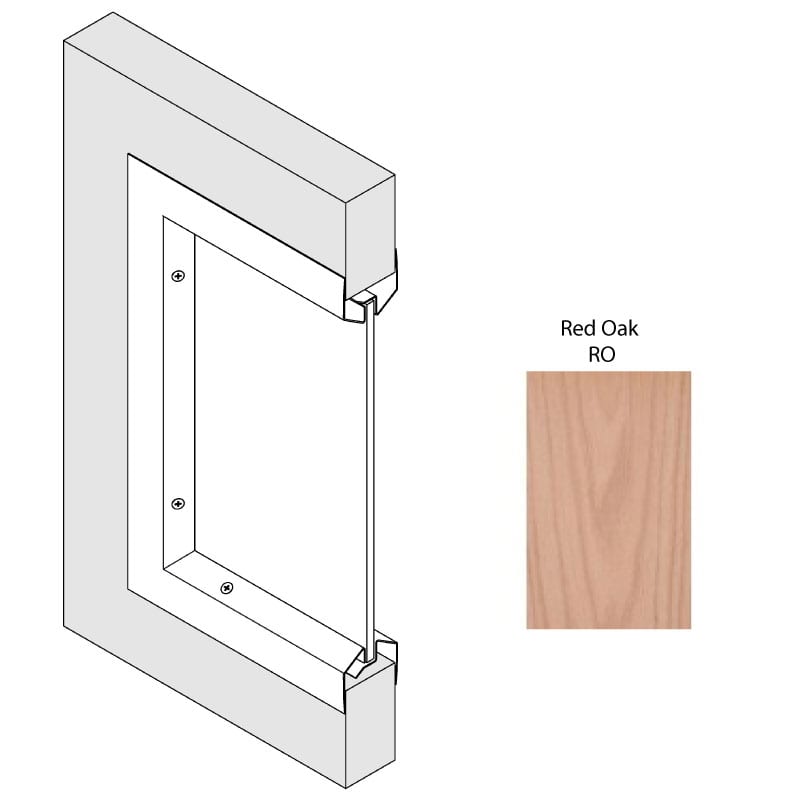

Self-Attaching, Beveled Vision Lite with Single Side Fasteners. Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side.
- 5 veneer types - .010 unfinished veneer
- Wood is raw and does not have a stain, clear coat, or finish - applied by others
- Mitered and welded corners with countersunk mounting holes
- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
- Visible light is 2″ under rough opening size. Glass size is 1″ under order size
- 1-1/4″ trim with radius corners, mitered and welded
This product is made to order and non-returnable or refundable.
Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts
| Brand |
Air Louvers |
|---|---|
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Door Thickness |
1-3/4" |
| Fasteners |
#8 x 1" flathead phillips SMS. Woodlite has wood veneer plugs covering screw heads |
| Finish |

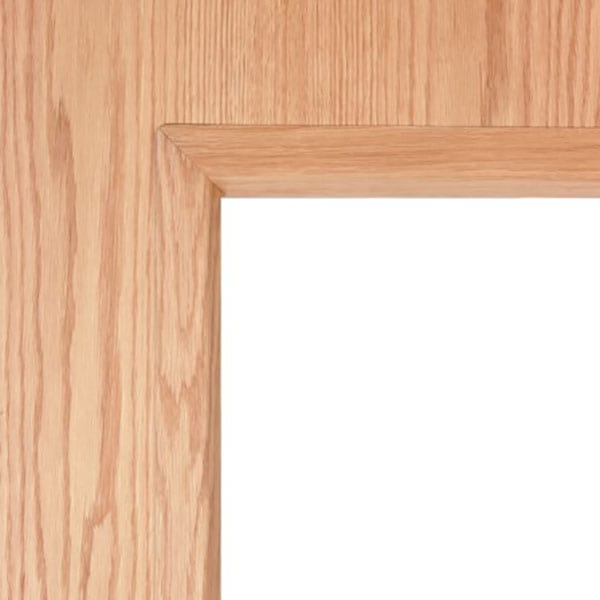

Cherry (CH)Walnut (WN)White Birch (WB)Red Oak (RO)Maple (MA) |
| Frame Construction |
20 Ga. Cold Rolled Steel with .010 Wood Veneer |
| Frame Fire-Rating |
Up to 90 Minutes. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure. |
| Frame Profile |
Low |
| Glass Thickness |
3/16" to 1/4" |
| Order Size |
24" x 32"6" x 27"12" x 12"24" x 56"24" x 30"24" x 64"8" x 32" |
