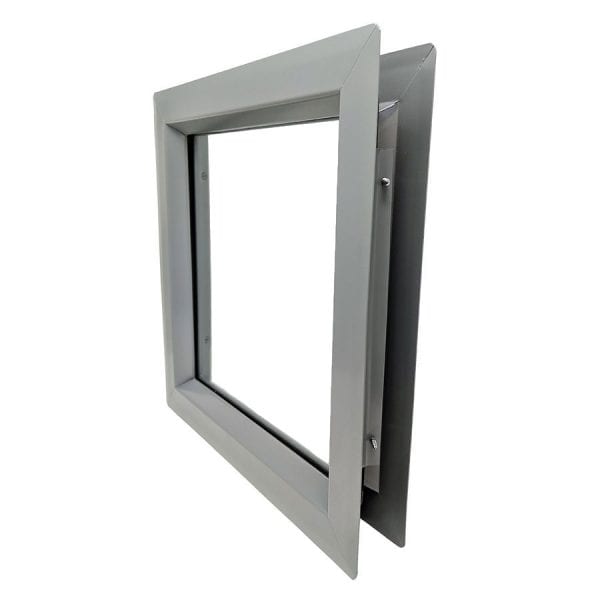

Air Louvers VSLH(G) Galvannealed Slimline Vision Lite Frame for 3/16" to 5/16" Glass, 1-3/4" Thick Door

$52.65
Usually Ships:  20-30 Business Days
  • 20-gauge galvannealed steel frame
  • For 3/16" to 5/16" glass (glass sold separately)
  • For use with 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

Low profile galvannealed steel vision lite frame for 3/16″ to 1/4″ thick glass, for 1-3/4″ thick doors

Galvannealed steel is ideal for exterior applications.

  • 20-gauge galvannealed steel frame
  • Mitered and welded corners with countersunk mounting holes
  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • 1-1/4" trim with radius corners, mitered and welded
  • Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side





Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

Gray
Finishes

Gray (G)
Frame Construction

20 Gauge Galvennealed Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Fire-Rating

3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed
Frame Profile

Low
Glass Thickness

3/16" to 1/4"
Order Size

7" x 22"18" x 60"18" x 32"8" x 18"8" x 36"24" x 36"24" x 24"6" x 27"18" x 30"18" x 24"6" x 60"24" x 64"24" x 32"8" x 32"5" x 35"12" x 12"24" x 56"24" x 72"18" x 18"6" x 56"24" x 60"24" x 30"
