Air Louvers

Air Louvers VSLH(S) Stainless Steel Vision Lite Frame for 3/16" to 5/16" Glass, 1-3/4" Thick Door

$234.00
Usually Ships:  20-30 Business Days
  • Stainless Steel Frame - #4 Finish
  • For 3/16" to 5/16" glass (sold separately)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

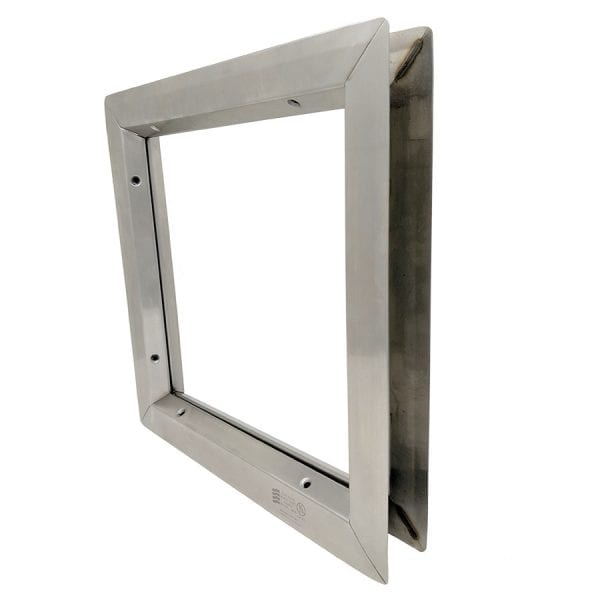

Stainless steel vision lite frame for 3/16" to 1/4" thick glass, for 1-3/4" thick doors

This vision lite frame is great for corrosive environments and can be installed in exterior doors. Stainless steel is known for its corrosion resistance. Stainless steel doors available.

  • 20 Gauge Stainless Steel #4 Finish
  • Mitered and welded corners with countersunk mounting holes
  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Visible light is 2" under rough opening size. Glass size is 1" under order size
  • 1-1/4" trim with radius corners, mitered and welded





Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

Stainless Steel
Frame Construction

20 Gauge Stainless Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Fire-Rating

3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed
Frame Profile

Low
Glass Thickness

3/16" to 1/4"

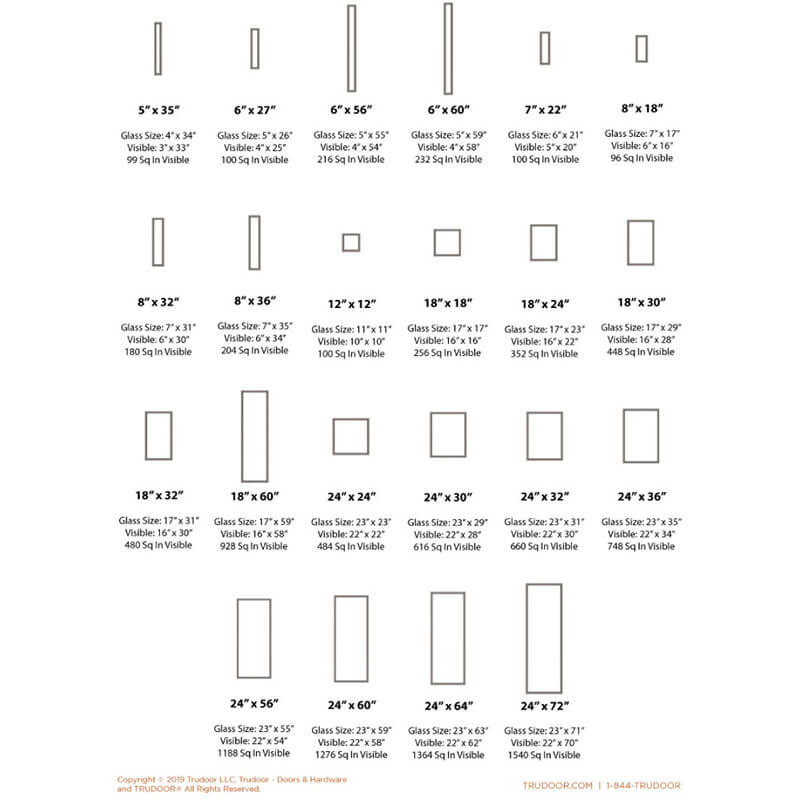

Order Size

8" x 32"5" x 35"12" x 12"24" x 60"24" x 30"7" x 22"8" x 36"24" x 36"24" x 24"6" x 27"24" x 64"24" x 32"
