Anemostat

Anemostat LoPro Vision Lite Frame for 3/16", 1/4" or 5/16" Glass, 1-3/4" Thick Door

$43.72
Usually Ships:  10-15 Business Days
  • 20-gauge steel frame
  • For 3/16", 1/4" or 5/16" glass (not included)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

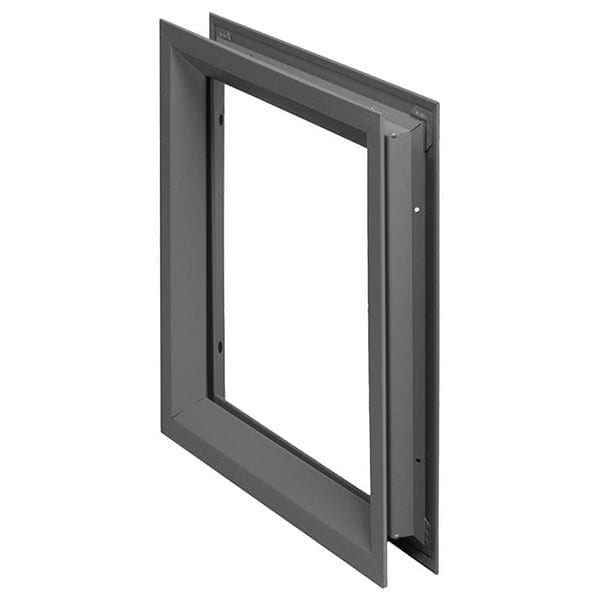

Anemostat LoPro™ Lo-Profile Metal Vision Frame for 1-3/4" Thick Doors and 3/16", 1/4" or 5/16" Glass

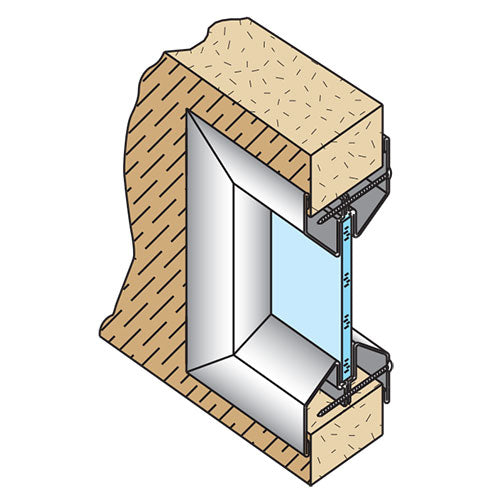

  • Low profile and beveled glass stop provide a clean tapered look, with tight mitered corners

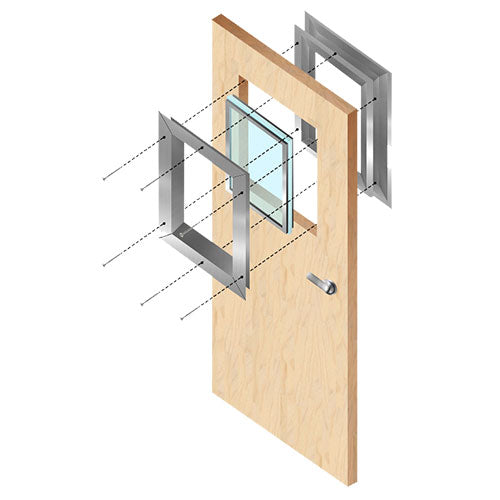

  • Easy to install and provides a low profile, flush-to-the-door look

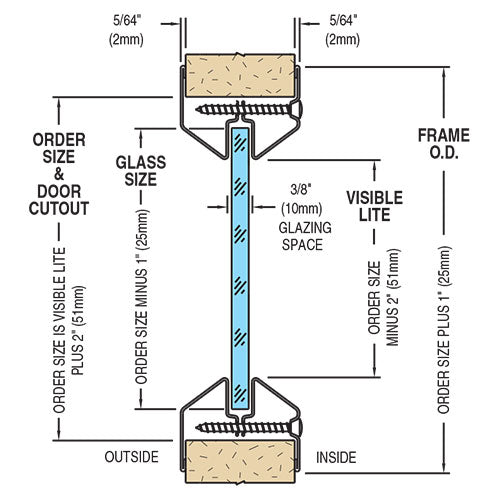

  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.



Brand

Anemostat
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

Dark BronzeGray Primed
Finishes

GPZ - Gray PrimerCAB - California Bronze
Fire Rating

UL Certified - Up to 3 Hours in Metal Doors and 90 Minutes in Wood Doors
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Profile

Low
Glass Thickness

3/16" 1/4" or 5/16"
Order Size

7" x 22"24" x 36"24" x 24"6" x 27"12" x 12"8" x 18"24" x 32"8" x 32"5" x 35"24" x 60"24" x 30"
LOPRO_Installation How to Install Von Duprin 98/99 Rim Exit Device
