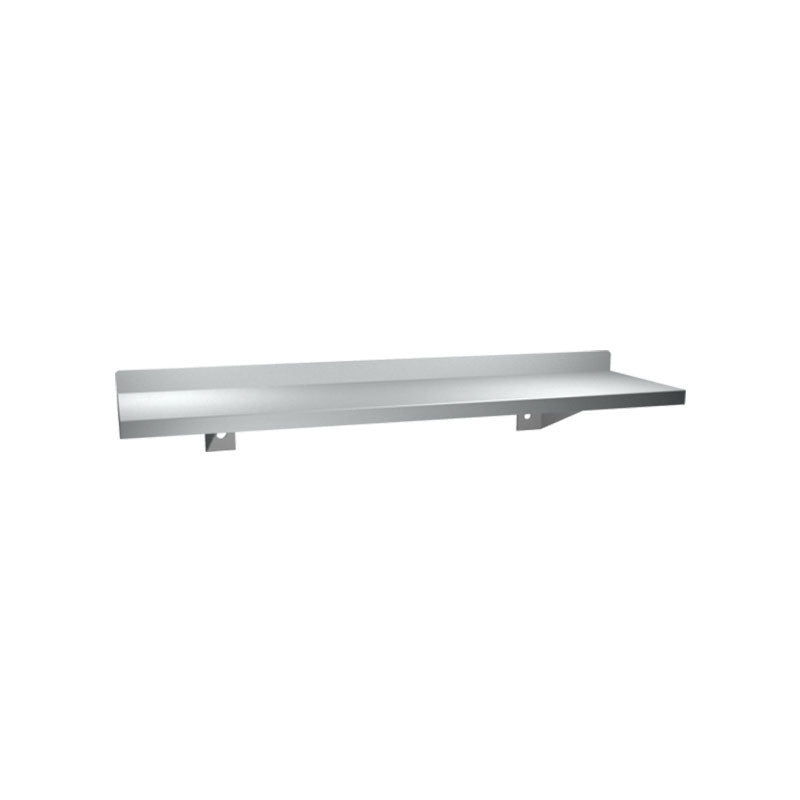

ASI 0694 Surface Mounted Stainless Steel Shelf with Backsplash

ASI 10-0694-_ Shelf w/ Backsplash - Stainless Steel

Fabricated of 18 gauge stainless steel with a satin finish on exposed surfaces. Shelf is 5" deep (127 mm) and has a 1" (25 mm) hollow pan construction on three (3) sides and raised backsplash all from one piece. Various lengths available.
Shelf is stable and stationary after proper and secure mounting to adequate wall reinforcement or stud structure. Shelf is suitable for wet (self-contained) or dry materials storage.
Size Chart
0694-18 – 5" [127] Deep x 18" [457] Long
0694-24 – 5" [127] Deep x 24" [609] Long
0694-48 – 5" [127] Deep x 48" [1219] Long
0694-60 – 5" [127] Deep x 60" [1524] Long
Installation
Unit is surface mounted on wall or partition using #10 self-threading screws (by others) through holes provided in support brackets. For compliance with 2010 Accessibility Standards install unit so that shelf top is between 48" [1219] maximum Above Finished Floor (AFF) and 32" [813] minimum AFF. For most common utility typical is 42" [1067] AFF or 18" [457] above wash basin.
