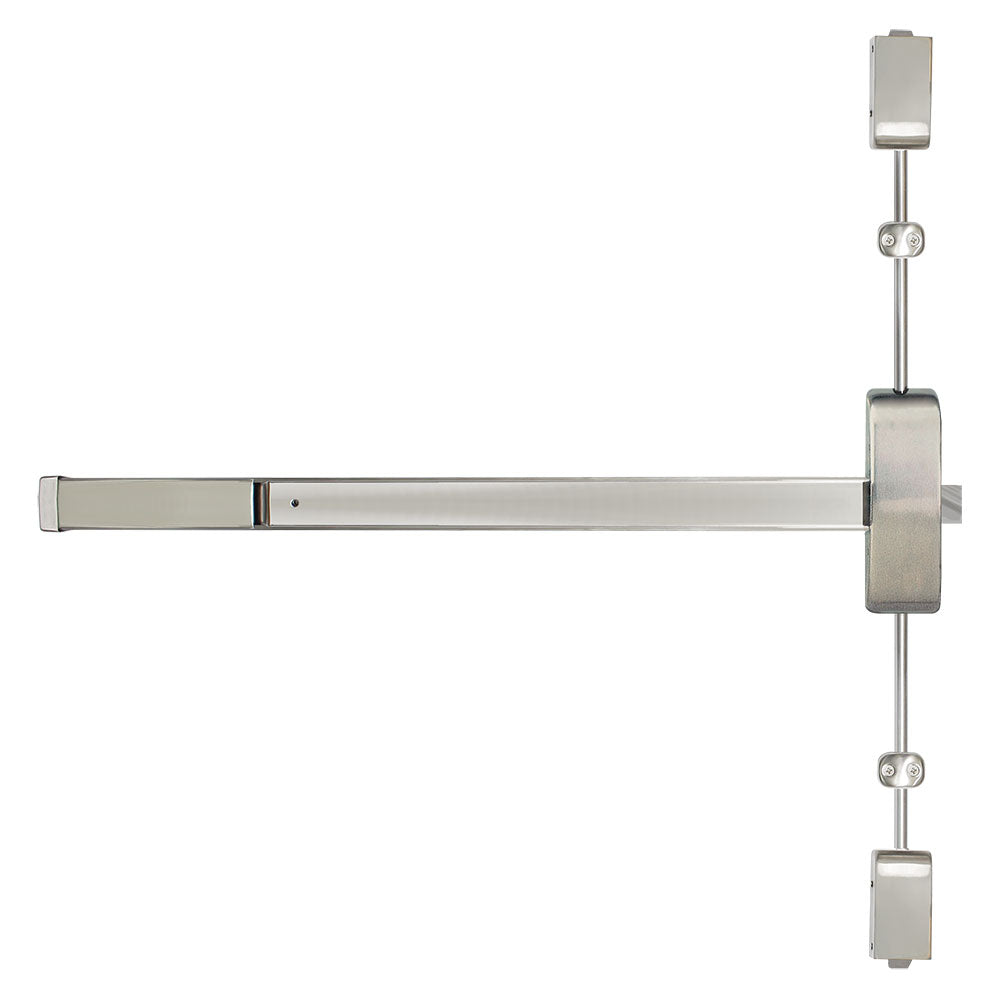

Cal-Royal 98-3PT Surface Vertical Rod, Three-Point Latching Exit Device

$616.36

This item ships FREE! Usually Ships: 2-3 Business Days

Available Options:

Quantity:

Added to Cart

Cal-Royal 98-3PT and F98-3PT Grade-1 Surface Vertical Rod, Three-Point Latching Exit Device, Exit Only, Satin Stainless Steel Finish

For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.

Exit Only (Outside Trim Sold Separately)
For Doors - 1 ¾” - 2 ¼” thick. 4-21/64” minimum Stile Width required for single and double door applications. Lever and escutcheon trims available.
Top & Bottom Chassis - Steel material for Panic and Fire Grade.
Cover - Aluminum, Zinc, Steel or Stainless Steel S304 material. Covers stock hollow metal doors with 161 cutouts.
Mounting - Furnished with wood and machine screws. Thru-Bolts are included and standard packaging on fire-rated devices.
End Cap - Steel or Stainless Steel S304 construction
End Bracket - Steel material
Hand - Handed. Easily field-reversible. Specify at time of order LHR, RHR for convenience
Latch Bolt - Stainless Steel S304 material; Top and Bottom Bolt: ⅝” throw, Rim Bolt: ¾” throw
Rod Guide - Steel or Stainless Steel S304
ANSI Standard - A156.3, Grade 1
Rail Assembly - Heavy gauge extruded Steel or Stainless Steel S304 body and push pad
Strike - (610) Roller Rim Strike, (620) Top Strike, (233) Bottom Strike, (221) Handicap Bottom Strike
Dogging Feature - Allen-type key furnished standard on non-fire labeled devices
UL and ULC Listed - 98-3PT Series for panic. F98-3PT Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire-labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

98-3PT__F98-3PT_CATALOG
