Cal-Royal ADB-704 Heavy-Duty Mortised Automatic Door Bottom

$93.26
Usually Ships:  2-3 Business Days
  • Mortised, 7/8″ drop
  • Supplied with neoprene seal
  • Fire-rated, air infiltration, and sound tested

Available Options:

Clear
Added to Cart

Product Overview

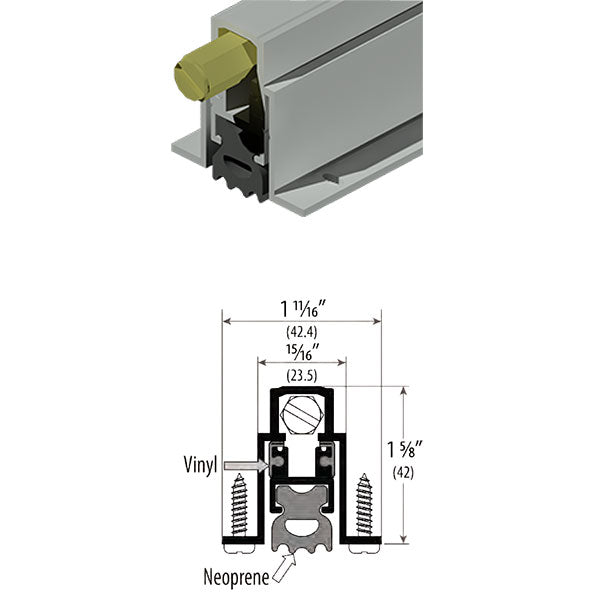

Cal-Royal ADB-704 Heavy Duty Mortised Automatic Door Bottom with Neoprene Seal

Engineered and tested for durability and reliable performance to ensure that they meet or exceed the industry standards, providing an energy-efficient door solution that restricts air, light, smoke, and insects from around the opening.

  • Finish Options: AN, DN
  • Length Available: 36″, 48″
  • Max. Drop: 7/8″
  • Heavy-Duty, Mortised Applications
  • For use with Wood or Hollow Metal Doors
  • Supplied with Closed Cell Sponge Neoprene
  • Maximum cut should not be closer to 1-1/2″ to the set screw
Brand

Cal-Royal
Finish

Dark BronzeAluminum
Finishes

Dark Bronze Anodized AluminumMill Finish Aluminum
Fire Rating

Fire Rated – UL10C – Positive Pressure
Insert/Seal Type

Neoprene or EPDM
Length

48"36"
ADB-704 Heavy-Duty Mortised Automatic Door Bottom
Cal-Royal ADB-704 Heavy-Duty Mortised Automatic Door Bottom
