Cal-Royal BA00 Barrington Entrance/Office Knob Lock

$44.96

Usually Ships: 2-3 Business Days

BHMA/ANSI Grade 2
ANSI F109 Function
UL Listed, 3 Hour Fire-Rated

Quantity:

Added to Cart

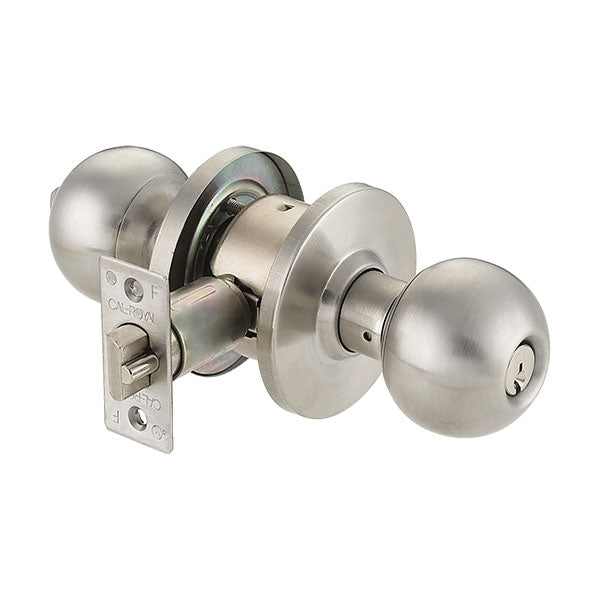

Cal-Royal Barrington Series BA00 Grade-2 Cylindrical Lock, Entrance Function, Satin Stainless Steel

Quality Designed and Engineered for Commercial Buildings

ANSI F109 - Turn / Push-button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned.

Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Standard Duty, GRADE 2
Lifetime Warranty
UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
Solid brass 6 pin “C” keyway cylinder
Concealed screw mounting
Long spindle hub eliminates hub wobble

Backset	2-3/4"
Brand	Cal-Royal
Cylinder Format	Conventional
Cylinder & Keys	6-pin conventional keyed different with 2 keys
Door Thickness	1-3/8" to 1-3/4"
Finish	Stainless Steel
Finishes	US32D (630) Satin Stainless Steel
Fire Rating	UL/cUL listed up to 3 Hours - UL symbol on the latch front
Handing	Non-Handed
Keyway	Schlage C Keyway
Latch	1/2" throw - 1-1/8" x 2-1/4" face
Lock Function	Entry (Entrance)
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage	Medium Duty
