Product Overview

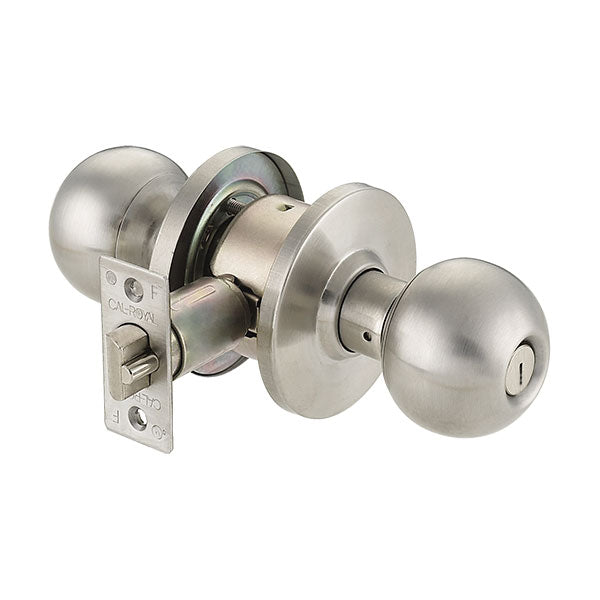

Cal-Royal Barrington Series BA20 Grade-2 Cylindrical Lock, Privacy Function, Satin Stainless Steel
Quality Designed and Engineered for Commercial Buildings
ANSI F76 - Latch bolt operated by knob from either side. Outside knob is locked by push button inside and unlocked by emergency release outside. Turning inside knob or closing door releases push button.
- Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Standard Duty, GRADE 2
- Lifetime Warranty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Concealed screw mounting
- Long spindle hub eliminates hub wobble
| Backset |
2-3/4" |
|---|---|
| Brand |
Cal-Royal |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Stainless Steel |
| Finishes |
US32D (630) Satin Stainless Steel |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Privacy |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Medium Duty |
Cal-Royal BA20 Barrington Privacy Knob Lock
