Product Overview

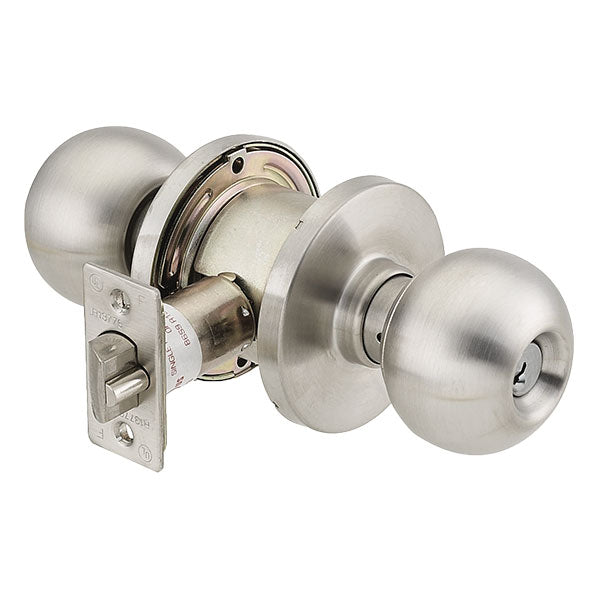

Cal-Royal GRB00 Grade-1 Cylindrical Lock, Omega Knob, Satin Stainless Steel
Quality Designed and Engineered for Commercial Buildings
ANSI F109 - Turn / Push-button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned.
- Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Heavy Duty, Exceeds 800,000 cycles
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Solid brass 6 pin “C” keyway cylinder
- Optional thru-bolt installation
- Heavy-gauge cold-rolled spindles add greater strength and security
- Long bearing length for smooth, wear-resistant operation
- Completely Reversible Handing
| Backset |
2-3/4" |
|---|---|
| Brand |
Cal-Royal |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Stainless Steel |
| Finishes |
US32D (630) Satin Stainless Steel |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Keyway |
Schlage C Keyway |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Entry (Entrance) |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
Cal-Royal GRB00 Omega Entry/Office Knob Lock
