Product Overview

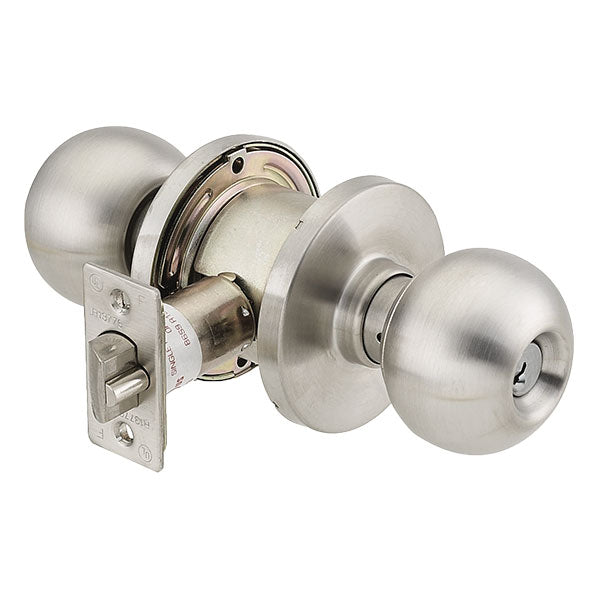

Cal-Royal GRB05 Grade-1 Cylindrical Lock, Omega Knob, Satin Stainless Steel
Quality Designed and Engineered for Commercial Buildings
ANSI F86 - Deadlocking latch bolt operated by key in outside knob or by rotating inside knob. Outside knob is always fixed.
- Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Heavy Duty, Exceeds 800,000 cycles
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Solid brass 6 pin “C” keyway cylinder
- Optional thru-bolt installation
- Heavy-gauge cold-rolled spindles add greater strength and security
- Long bearing length for smooth, wear-resistant operation
- Completely Reversible Handing
| Brand |
Cal-Royal |
|---|---|
| Lock Function |
Storeroom |
| Usage |
Heavy Duty |
| Cylinder & Keys |
6-pin conventional, keyed different, with 2 keys |
| Keyway |
Schlage C Keyway |
| Backset |
2-3/4" |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finishes |
US32D (630) Satin Stainless Steel |
Cal-Royal GRB05 Omega Storeroom Knob Lock
