Cal-Royal

Cal-Royal N-98GLS-SVR Narrow Stile Surface Vertical Rod Exit Device

$540.64
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI A156.3 Grade-1
  • ANSI function 01, exit only (trim sold separately)
  • Typically used with aluminum glass doors

Available Options:

Clear

Product Overview

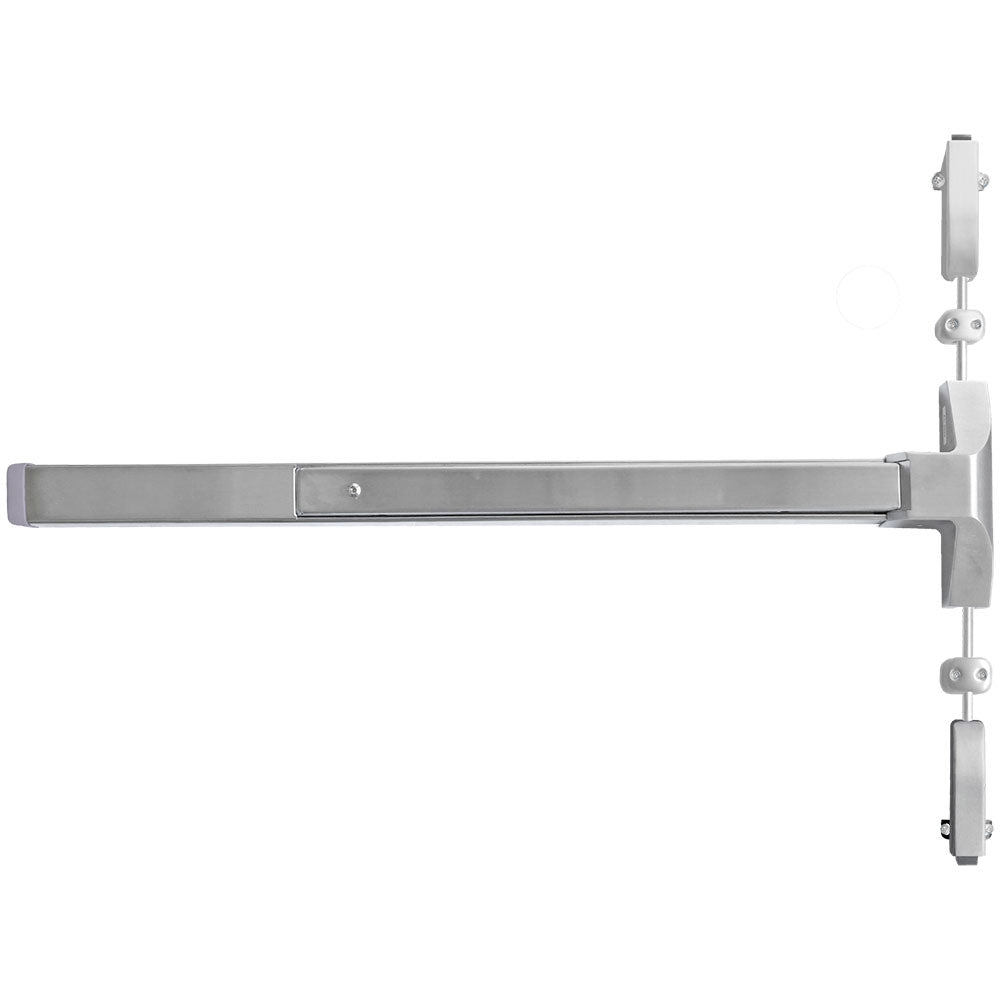

Cal-Royal N-98GLS-SVR Grade-1 Narrow Stile Surface Vertical Rod Exit Device, Exit Only


For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.
  • Exit Only (Outside Trim Sold Separately)
  • For Doors - Wood, Metal or Aluminum Glass doors with 1-3/4" minimum stile width
  • Top & Bottom Chassis - Steel Material
  • Chassis Cover - Zinc Material
  • Mounting - Furnished standard with wood and machine screws
  • End Cap - Stainless Steel Construction
  • Alarm - Not available
  • Hand - Handed. Easily field reversible. Specify at time of order LHR or RHR for convenience
  • ANSI Standard - A156.3, Grade 1
  • Rail Assembly - Stainless Steel Material

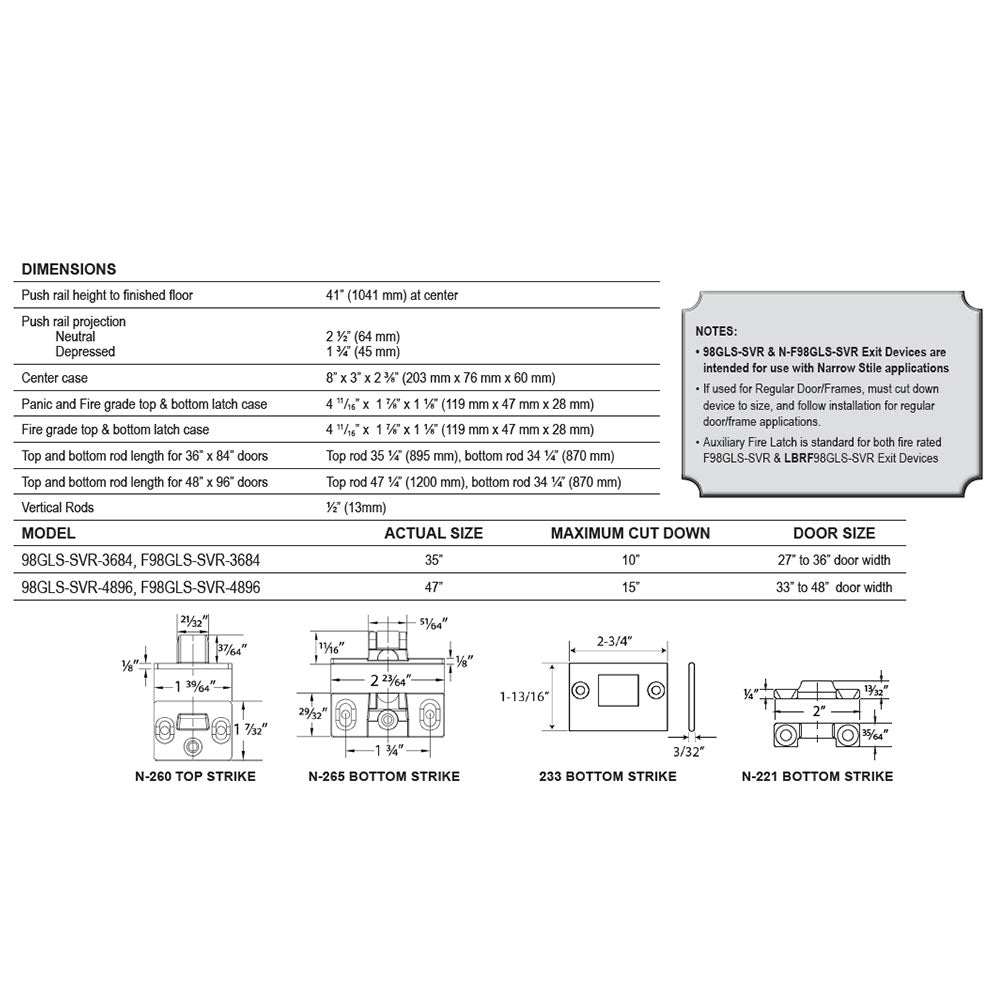

  • Strike - N-260 & N-265 (Steel), 233 (Stainless Steel); Optional N-221 Bottom Strike (Brass)
  • Dogging Feature - Allen-type key furnished standard. Optional Cylinder Dogging Kit not available
  • UL and ULC Listed - 98GLS-SVR Series for Panic & Safety
