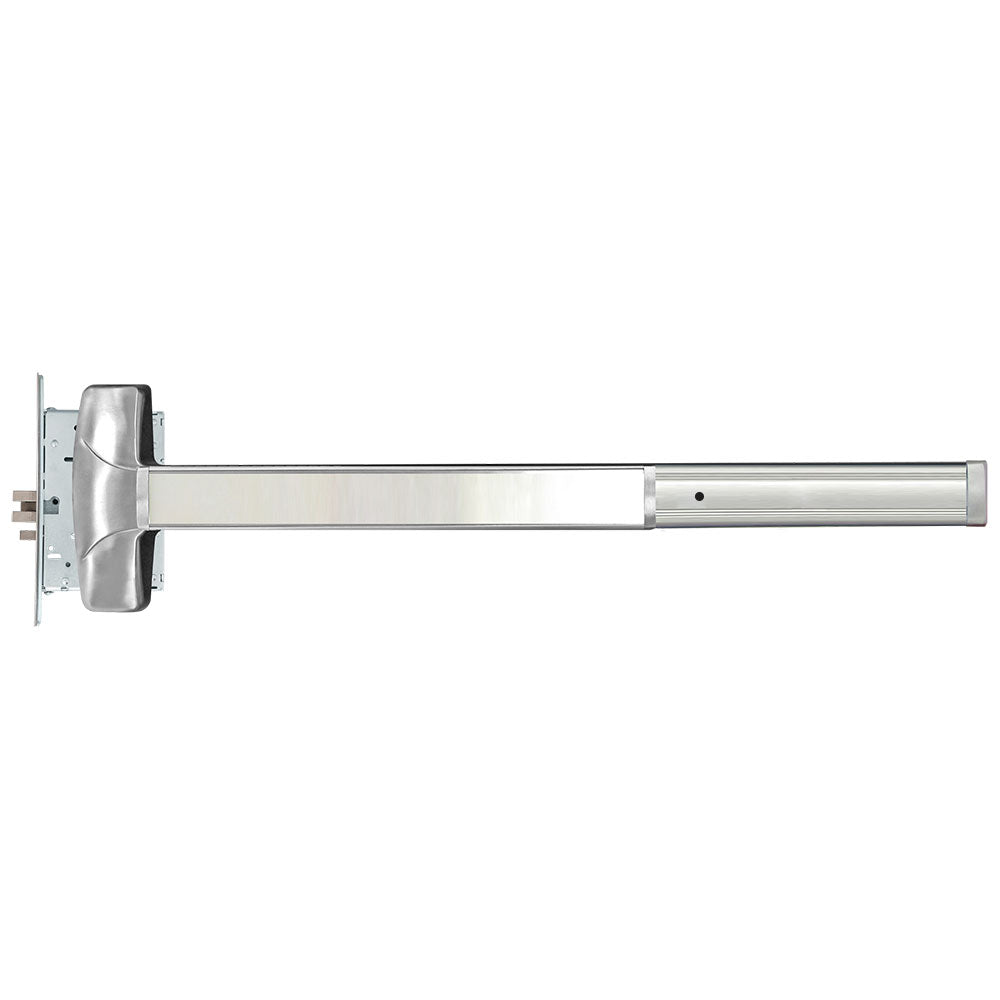

Cal-Royal N-MR7705EO Mortise Exit Device

$677.41
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes mortise body and strike
  • For storeroom or passage lever trim (trim sold separately)

Available Options:

Clear

Product Overview

Cal-Royal N-MR7705EO / N-FMR7705EO Grade-1 Storeroom Mortise Exit Device, For Storeroom or Passage Trim, Less Trim


The 7700 Series rim exit device offers uncompromising security and safety and is used in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
  • Exit Only - (Outside Trim Sold Separately)
  • For Doors - Wood / Metal 1-3/4" (44.5 mm) minimum thickness, 4-1/2" (114 mm) minimum stile width
  • Mortise Lock Case - Steel
  • Head Chassis - Aluminum
  • Chassis Cover - Zinc Material
  • Mounting - Furnished standard with wood and machine screws
  • End Cap - Aluminum
  • Handing - Handed. Easily Field Reversible. Specify RHR or LHR for convenience.
  • ANSI Standard - A156.3, Grade 1
  • Strikes - Standard ANSI Strike (Stainless Steel)
  • Fire Exit Hardware - N-FMR7700 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
  • Mortise Lock - Grade (1) for 1-3/4" (44.5mm) thick doors. Handed, Field Reversible. Specify RHR or LHR.  Fits door prepared for ANSI Standard A115.1
