Cal-Royal NALRMA2200 Alarmed Rim Exit Device

$298.59

Usually Ships: 2-3 Business Days

Available Options:

Finish
Length

Quantity:

Added to Cart

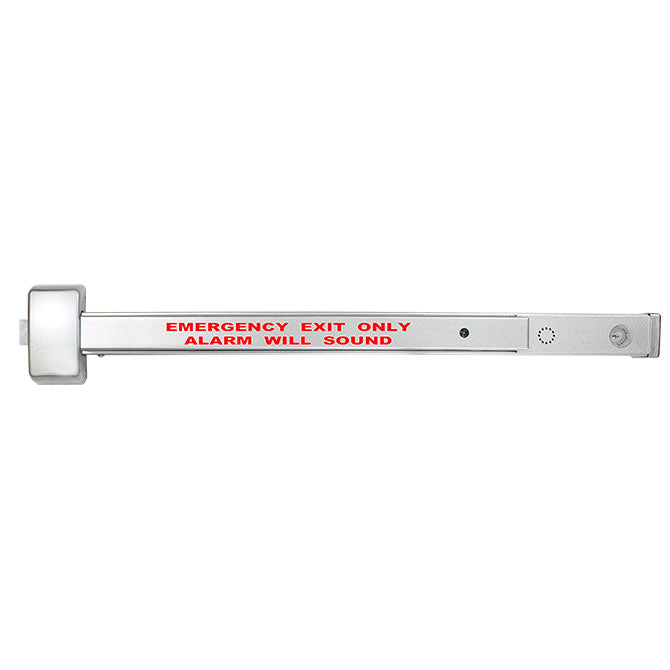

Cal-Royal NALRMA2200 Alarmed Rim Exit Device, Exit Only

Includes a built-in battery-powered alarm - great for applications such as retail, hospitality, and more.

1, 3, 5-minute and continuous alarm type settings available 3-1/2"
ON and OFF power switch
Alarm sound frequency is 120 db
Alarm unit has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and breached
The key switch to turn alarm off is a standard 1-1/4"” cylinder with “C” keyway.
The alarm operates on one standard 9-volt transistor battery. When battery is weak the horn will emit an intermittent signal.
Alarmed units are supplied with a micro switch, which monitors the push rail and the latch bolt for foolproof security on rim devices
Alarm unit has a signal OC output that can be linked to external alarm control systems
Easy removal of the alarm unit without the need to dismount the exit device for battery maintenance
Unit includes “EMERGENCY EXIT ONLY ALARM WILL SOUND” decal for application on door or unit
ANSI/BHMA Grade 1 and UL/cULlisted for panic hardware
Exit Only - (Outside Trim Sold Separately)

Brand	Cal-Royal
Finishes	ALUM Aluminum
Length	36" (For 30” to 36” doors), 48" (For 37” to 48” doors)
Cylinder	Standard 6-pin mortise cylinder included
Keyway	Schlage C Keyway
Usage	Medium Duty
ANSI/BHMA Standard	Certified ANSI/BHMA A156.3, Grade 1
Fire Rating	Non-Fire-Rated
Dogging Feature	None
Latchbolt	Stainless steel 3/4” throw with anti-pick feature
Strike	239 packed standard
Door Thickness	1-3/4"
Stile Type	Wide (Standard)
Handing	Non Handed – Completely Reversible
Warranty	Limited Lifetime Warranty

Cal-Royal-A2200__AF2200_Rim_Type

Cal-Royal NALRMA2200 Alarmed Rim Exit Device
