Cal-Royal

Cal-Royal VL Series Vision Lite Frame for 3/16" to 1/4" Glass, 1-3/4" Thick Door

$40.55
Usually Ships:  3-5 Business Days
  • 20-gauge cold rolled steel frame
  • For 3/16" to 1/4" Glass (sold separately)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

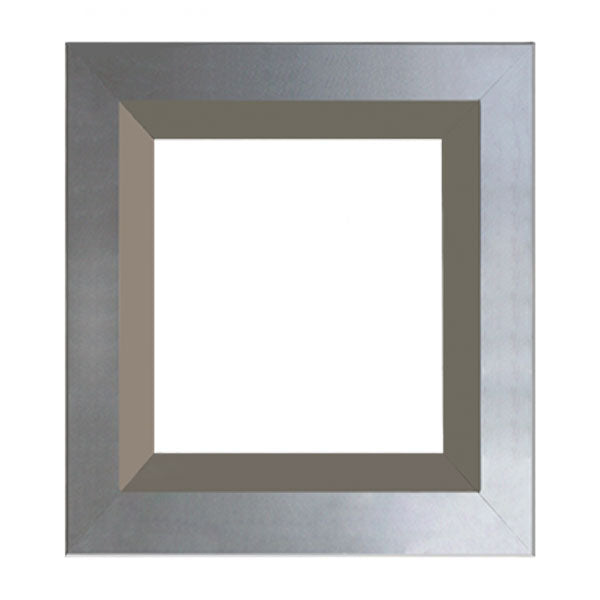

Cal-Royal VL Series Steel Vision Lite Frame for 3/16″ to 1/4″ Thick Glass, for 1-3/4″ Thick Doors

For use in fire-rated door applications under positive and neutral pressure. Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), CAN/ULS104 (2010), NFPA (201), and CSI CODE 0870 00.

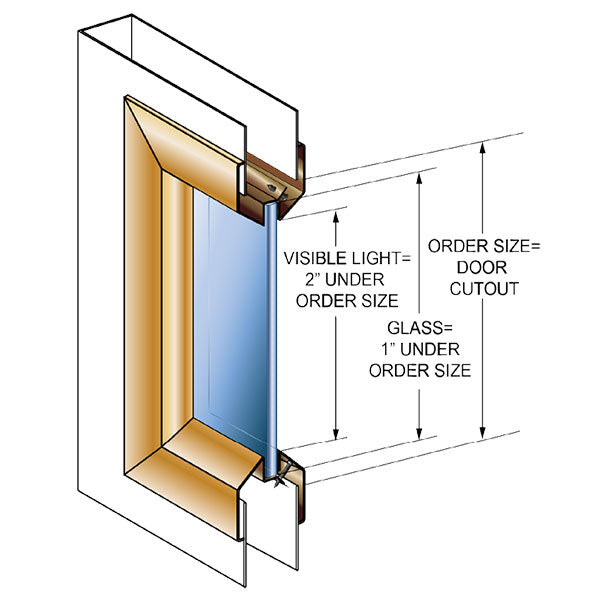

  • Order size = cut-out size
  • Visible light is 2″ under rough opening size. Glass size is 1″ under order size
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Standard Profile Beveled Vision Lite
  • 20 Gauge Cold Rolled Steel
  • Mitered welded corners with counter-sunk mounting holes
  • Single side attaching with matching mounting screws included
  • For use with 3/16” to ¼” glass thickness
  • Designed for use with 1 ¾” doors only
  • Baked on powder coat finish
  • Color: Standard Bronze
  • Fastener: # 8 x ⅞” flathead phillips head SMS
Brand

Cal-Royal
Door Applications

1-3/4" Metal and Wood Doors
Door Thickness

1-3/4"
Finish

Dark Bronze
Finishes

Dark Bronze (DB)
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

# 8 x ⅞” flathead phillips head SMS
Frame Fire-Rating

Intertek testing certification in compliance to NFPA 252 (2000) UL 10C (2009) CAN/ULS104 (2010) NFPA (201) and CSI CODE 0870 00
Glass Thickness

3/16" to 1/4"
Order Size

16" x 32"24" x 30"14" x 14"7" x 22"8" x 38"6" x 72"5" x 20"6" x 36"18" x 56"20" x 36"18" x 30"20" x 20"8" x 18"18" x 36"24" x 36"14" x 36"24" x 24"8" x 62"6" x 27"8" x 30"12" x 12"6" x 26"5" x 5"6" x 30"22" x 36"10" x 10"20" x 32"18" x 32"18" x 62"8" x 36"16" x 36"24" x 32"14" x 32"8" x 32"8" x 56"5" x 35"8" x 8"6" x 24"12" x 32"24" x 34"22" x 32"24" x 56"20" x 30"18" x 18"32" x 32"24" x 60"
