Product Overview

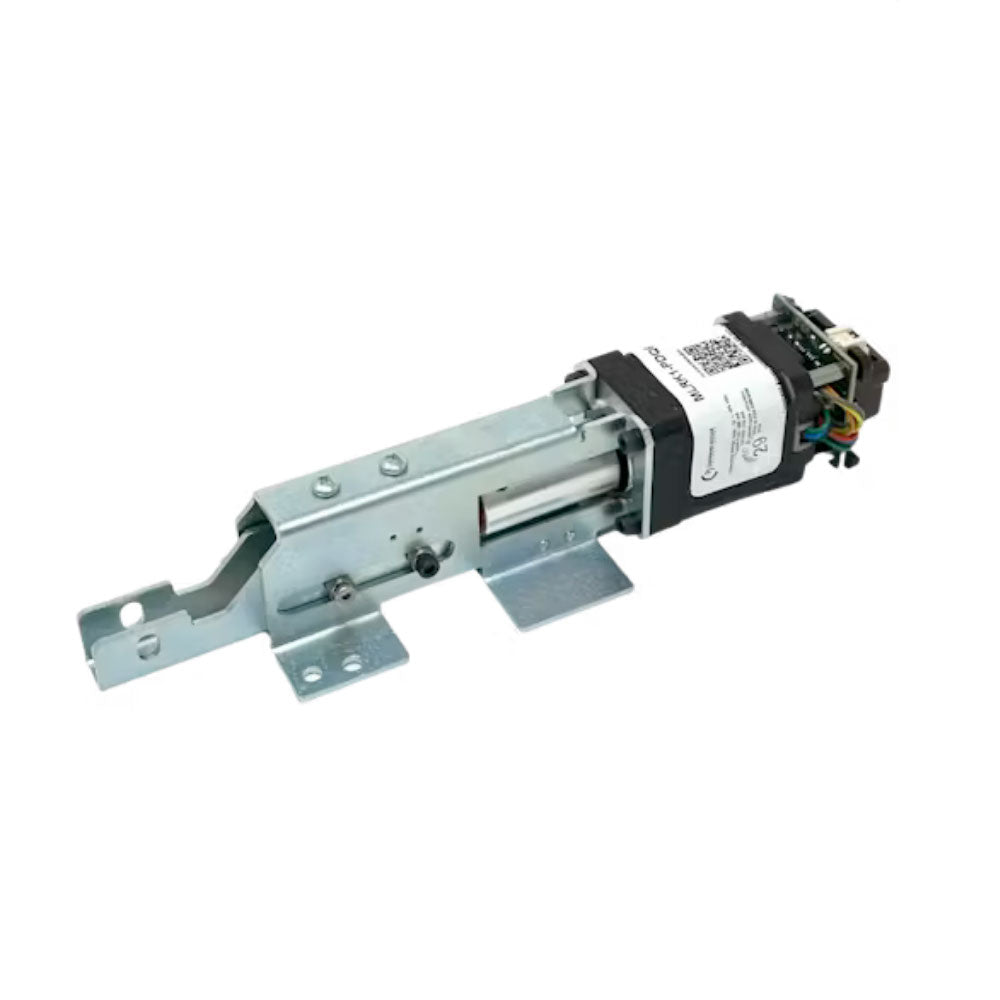

Command Access MLRK1-PDQ63 Motorized Latch Retraction Kit, for PDQ 6300/6400 Series Exit Devices (Field Installation)
The MLRK1-PDQ63 is a robust, straightforward field-installable motorized latch retraction kit for PDQ 6300 series exit devices series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1-touch PTS “Push to Set” technology, making post-installation adjustments a breeze. An optional built-in REX switch is available on all units!
- Fast, Quite, Smooth & Strong!
- Patent pending Push to Set (PTS) Technology
- Next Generation MM5 Smart Module: Onboard diagnostics
- Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
- Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
- UL Listed
- 3-Year “No Hassle” Warranty
- Voltage Range – 24 TO 28 VDC
- System protection – unit shutdown when voltage exceeds 28 VDC
- Standard - average current peak: 900MA, average current hold: 215MA
- PTS adjustment - approx. 1/4"
- Wire Run: 300' with 18ga wire
- Cutdown details: 36” - 2", 48" - 8"
- Built-in (REX) Request-to-Exit kit optional
| Brand |
Command Access |
|---|---|
| Model |
MLRK1-PDQ63, MLRK1-PDQ63-REX (w/ Request to Exit) |
| Part Type |
Electric Latch Retraction Kit |
| Compatible Devices |
PDQ 6300 / 6400 |
| Warranty |
3 Year |
| Buy American Act Compliance |
Meets BAA - Buy American Act |
