Design Hardware

Design Hardware ELR-1000V Surface Vertical Rod Exit Device with Electric Latch Retraction

$1,032.58
This item ships FREE! Usually Ships:  3-5 Business Days
  • Heavy Duty, ANSI A156.3 Grade 1
  • Energy-efficient motorized latch retraction
  • 24VDC filtered and regulated

Available Options:

Clear

Product Overview

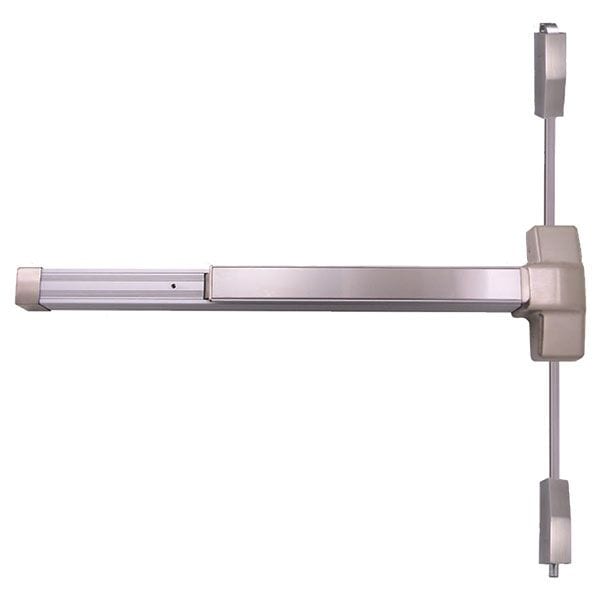

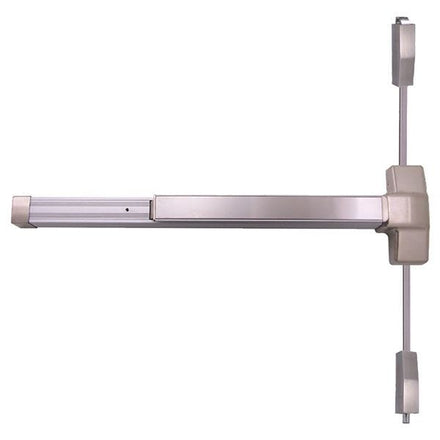

Design Hardware ELR-1000V Grade-1 Wide Stile Surface Vertical Rod Exit Device with Electric Latch Retraction, 7ft Height, Exit Only


ELR – Electric latch retraction/hold back exit devices allow for remote keyless access in high occupancy/high traffic conditions such as hospitals, airports, schools and churches. The device may be continously energized allowing for a push/pull condition if desired.
  • Exit Only (Design Hardware Exit Device Trim Sold Separately)
  • Door Heights: 7' Standard – Extended Top Rods available for up to 8′ tall doors
  • Designed for high traffic conditions such as hospitals, airports, schools, and churches
  • Requires low power
  • Offers quiet operation
  • Operating Voltage: 24VDC Filtered and Regulated
  • Amperage: 1 AMP MAX inrush, 400mA MAX Holding
  • On-Board diagnostic LED indicators
  • Automatic retry
  • Low power requirements
  • Non polarized leads
  • Simultaneous latch retraction and dogging (push pad drepressed)
  • Momentary or maintained operation
  • UL Listed for both Panic and Fire Exit Hardware
  • Optional REX Request to exit switch
ELR-1000-Raceway-Template 1000V-Installation-Instructions F1000V-Installation-Instructions F1000V-LBR-Installation-Instructions How to Install Von Duprin 98/99 Rim Exit Device
