Product Overview

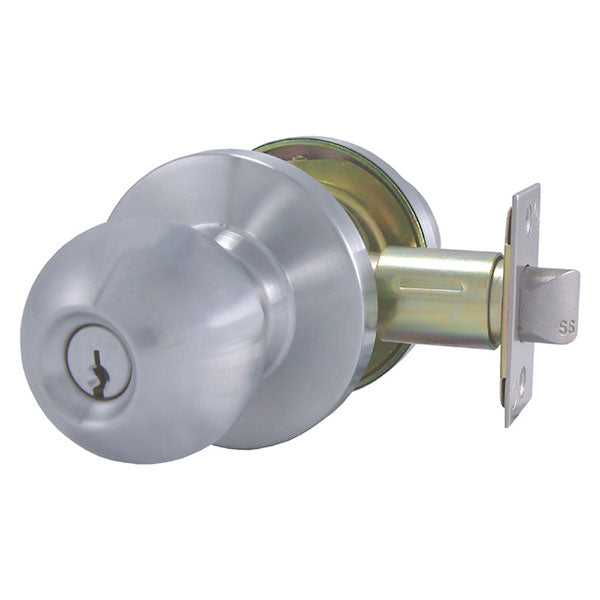

Design Hardware K2-82 Grade-2 Cylindrical Lock, Entrance Function, Satin Chrome
Designed for fast and easy installation
ANSI F109 - Turn/Push button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned. Deadlocking latchbolt operated by inside knob at all times.
- Meets ANSI - A156.2, Series 4000, Grade 2 Standards
- UL Listed for ”A” Label 3 Hour Fire Doors
- Steel, Zinc dichromated for corrosion resistance
| Backset |
2-3/4" |
|---|---|
| Brand |
Design Hardware |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Keyway |
Schlage C Keyway |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Entry (Entrance) |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Medium Duty |
Design Hardware K2-82 Entrance/Office Knob Lock
