Product Overview

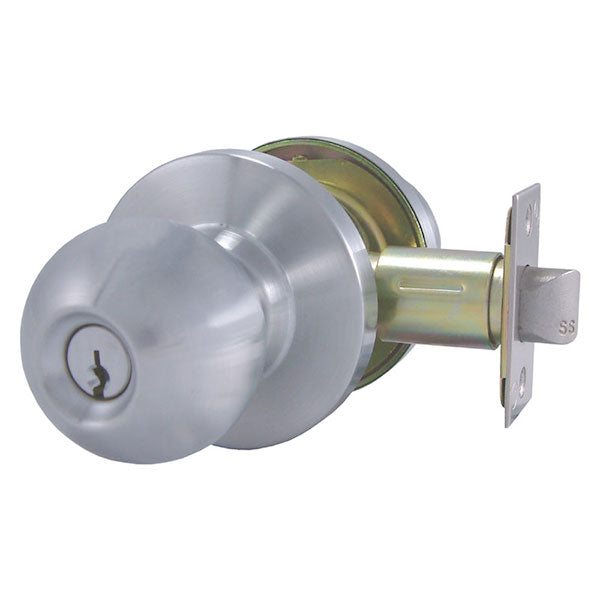

Design Hardware K2-86 Grade-2 Cylindrical Lock, Storeroom Function, Satin Chrome
Designed for fast and easy installation
ANSI F86 - Deadlocking latchbolt operated by key in outside knob or rotating Inside knob. Outside knob is always locked.
- Meets ANSI - A156.2, Series 4000, Grade 2 Standards
- UL Listed for ”A” Label 3 Hour Fire Doors
- Steel, Zinc dichromated for corrosion resistance
| Backset |
2-3/4" |
|---|---|
| Brand |
Design Hardware |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Keyway |
Schlage C Keyway |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Storeroom |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Medium Duty |
Design Hardware K2-86 Storeroom Knob Lock
