Product Overview

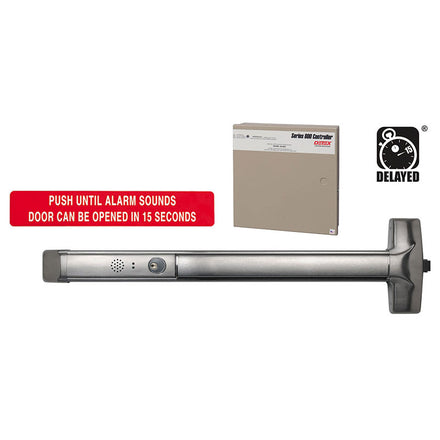

Detex 10 EE Advantex Wide Stile Rim Exit Device, Cylinder Dogging, 99 Surface Strike, 15 Second Delayed Egress, Satin Stainless Steel Finish
The Delayed Egress (EE) option is designed for applications that require a delayed egress, alarmed panic device. The alarm, with approximately 100 decibels will sound when someone attempts to exit, alerting management that an unauthorized exit has been attempted. The alarm will continue to sound, but the door will remain locked for 15 seconds, which deters the unauthorized exit and provides the responsible party time to respond to the alarm.
Features
- Provides immediate egress while securing against entry during a power failure/fire alarm without the use of a maglock
- Secure installation prevents mistakes, enhances security and reduces maintenance
- State-of-the-art electronics offer reliable security and instantaneous alarm
- Armed and disarmed field selectable status indicator
- Fire alarm input can be connected at power supply or panic bar
- Power supply included as standard feature
- Exit only (outside trim sold separately)
- One cylinder (sold separately) provides arming, disarming, and dogging
| ANSI/BHMA Standard |
ANSI/BHMA certified A156.3 |
|---|---|
| Brand |
Detex |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
CD - Cylinder Dogging (less cylinder) |
| Door Thickness |
1-3/4" to 2-1/4" |
| Finish |
Stainless Steel |
| Finishes |
630 Satin Stainless Steel |
| Fire Rating |
Non-Fire-Rated |
| Handing |
Non-Handed |
| Latchbolt |
Stainless steel deadlocking Pullman-type latch bolt |
| Length |
48"36" |
| Minimum Stile Width |
4-5/8” with standard 99 strike |
| Stile Type |
Wide (Standard) |
| Strike |
99 strike standard |
| Usage |
Heavy Duty |
| Warranty |
10 Year Mechanical / 3 year Electrical Limited Manufacturer's Warranty |
