Dormakaba

Dormakaba ED900-T-SW Low Energy Swing Door Operator - Pull-Side, Track Mount

$4,162.08
This item ships FREE! Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade 1 Certified
  • Smallest footprint in the industry
  • Fully ADA Compliant

Available Options:

Clear

Product Overview

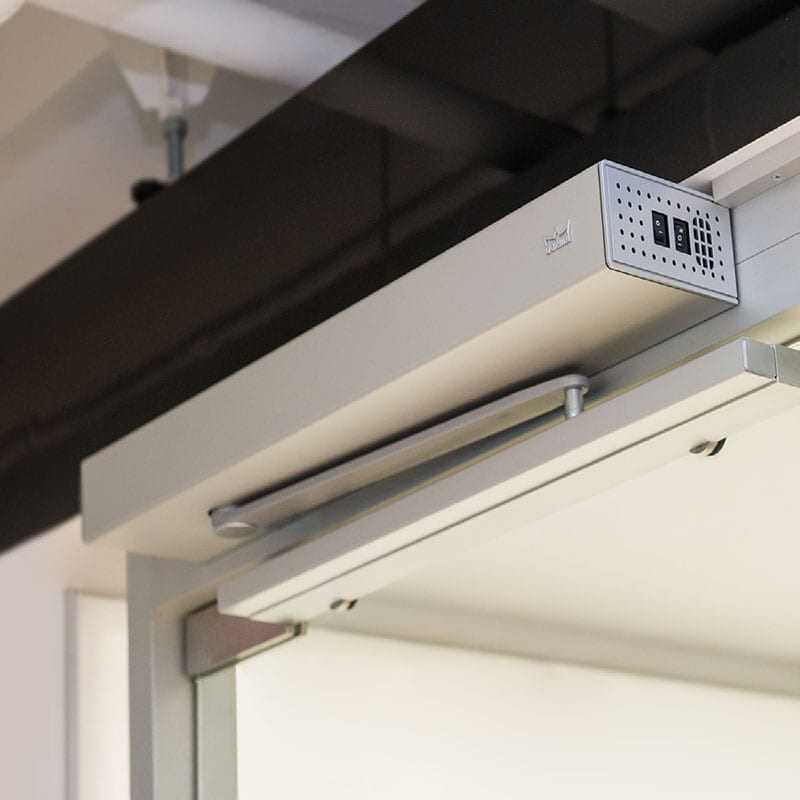

Dorma ED900-T-SW Low Energy Swing Door Operators, Pull Side Track Mount, Standard Width Cover

dormakaba's most advanced low-energy swing door power operator

Employing an innovative electromechanical drive and a state-of-the-art microprocessor motion control system, the ED900 is DORMA's most advanced low-energy swing door power operator. The operator is exceptionally quiet, safe, and easy to use.

Advanced power assist: When operated manually, the ED900 demands little physical effort. Advanced power assist through the entire opening cycle makes even the heaviest-rated door feel light.

Fully ADA compliant: The operator is especially helpful for children, the elderly, persons with disabilities, or those carrying objects or pushing carts. This fully ADA-compliant device opens doors at precisely controlled speeds and forces, assuring safety for all users.

Advanced features: The ED900 also includes a blow-open feature for smoke ventilation (per NFPA code 92B), permanent hold-open, and an onboard power supply delivering 1.5 amps @ 24-volt DC, which eliminates the need for a secondary power supply. It includes twelve programmable options to accommodate even the most challenging door installations.

Small footprint: The ED900 low energy operator boasts the smallest footprint in the industry, up to 65 percent smaller than some other manufacturers' operators.

Onboard Power Supply: Delivers an unprecedented 1.5 amps @ 24 VDC: 3× more power than the competition. No need for separate power supply.

codes

ANSI/BHMA Standard

ANSI/BHMA 156.19 Power Assist and Low Energy Power Operated Doors
Brand

Dormakaba
Finish

Dark BronzeBlackAluminum
Finishes

695 Dark Bronze693 Black689 Aluminum
Handing

Non-Handed
Mounting

Surface Mount - Pull Side
Usage

Heavy Duty
