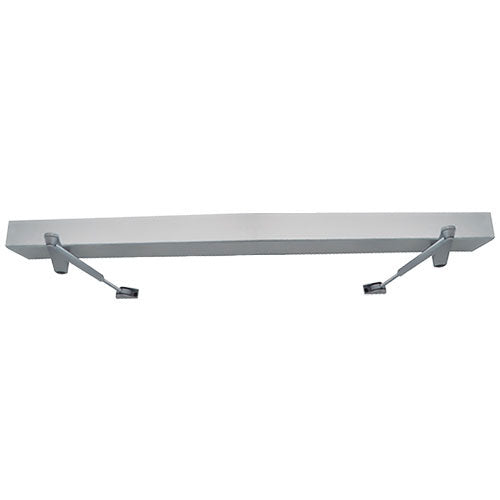

Dormakaba ED900PR-J8 Low Energy Swing Door Operator Pair for Double Doors - Push-Side, Top Jamb Mount

Dorma ED900-J8 Low Energy Swing Door Operator Pair for Double Doors, Push Side Top Jamb Mount

dormakaba's most advanced low-energy swing door power operator

Employing an innovative electromechanical drive and a state-of-the-art microprocessor motion control system, the ED900 is DORMA's most advanced low-energy swing door power operator. The operator is exceptionally quiet, safe, and easy to use.

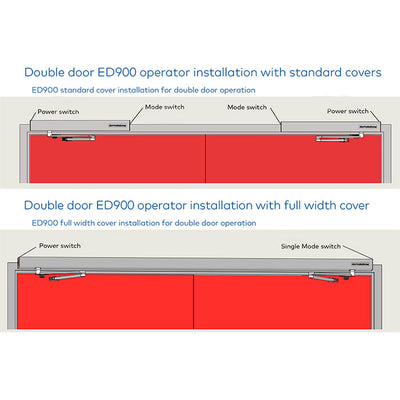

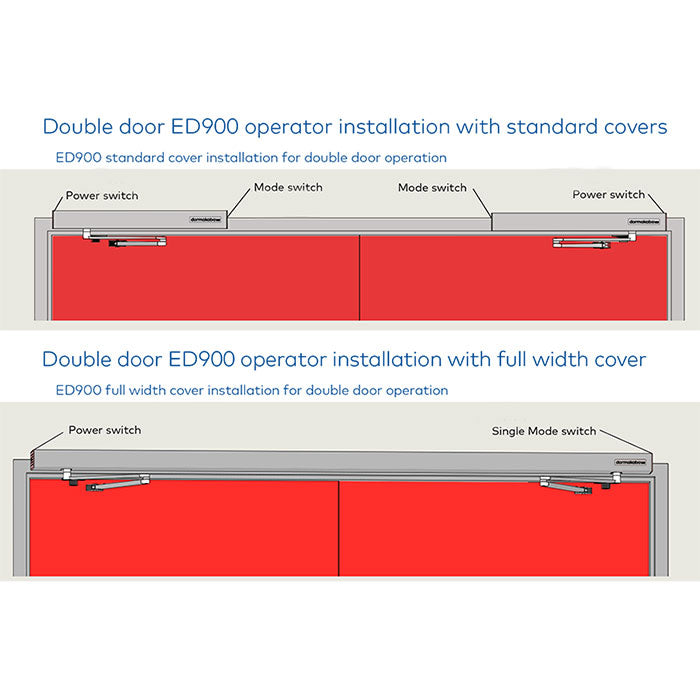

Cover Types:

• SW = Two standard width covers, 27", for two ED900 operators
• FWPRS = Seamless full width cover for pair of doors (door widths from 56"–96"), includes center mounting plate, control switch wiring harness, synchronizing cable, mode switch with cable, and power harness jumper.

Features:

• Advanced power assist: When operated manually, the ED900 demands little physical effort. Advanced power assist through the entire opening cycle makes even the heaviest-rated door feel light.
• Fully ADA compliant: The operator is especially helpful for children, the elderly, persons with disabilities, or those carrying objects or pushing carts. This fully ADA-compliant device opens doors at precisely controlled speeds and forces, assuring safety for all users.
• Advanced features: The ED900 also includes a blow-open feature for smoke ventilation (per NFPA code 92B), permanent hold-open, and an onboard power supply delivering 1.5 amps @ 24-volt DC, which eliminates the need for a secondary power supply. It includes twelve programmable options to accommodate even the most challenging door installations.
• Small footprint: The ED900 low energy operator boasts the smallest footprint in the industry, up to 65 percent smaller than some other manufacturers' operators.
• Onboard Power Supply: Delivers an unprecedented 1.5 amps @ 24 VDC: 3× more power than the competition. No need for a separate power supply.
