Product Overview
When you need a tough, reliable knob lock, you need a Falcon® X Series lock.

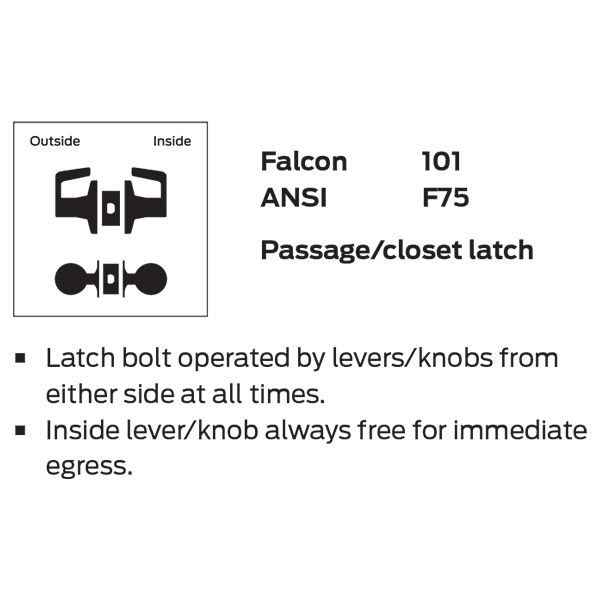

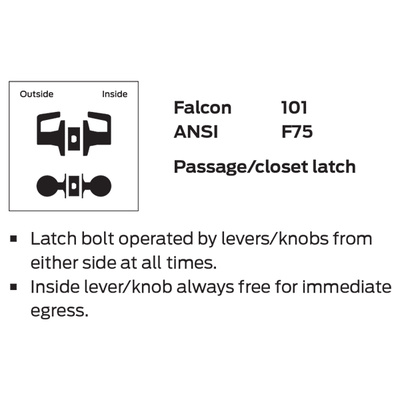

ANSI Function F75 - Keyless - Latch bolt by knob at all times.
- Certified ANSI/BHMA A156.2, Series 4000, Grade 1 for quality and reliability
- Durable and reliable - Brass or cold-formed steel construction with a zinc dichromate for rust resistance
- Durable - Heavy-wrought brass, bronze or stainless steel roses over steel through-bolted rose inserts provide added strength
- UL listed for 3 hour A label doors
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.2 Series 4000 Grade 1 for quality and reliability |
|---|---|
| Backset |
2-3/4" |
| Brand |
Falcon |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Passage |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Warranty |
10 Year Limited |

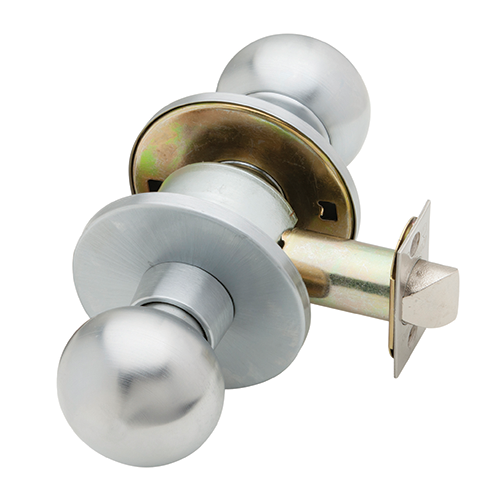

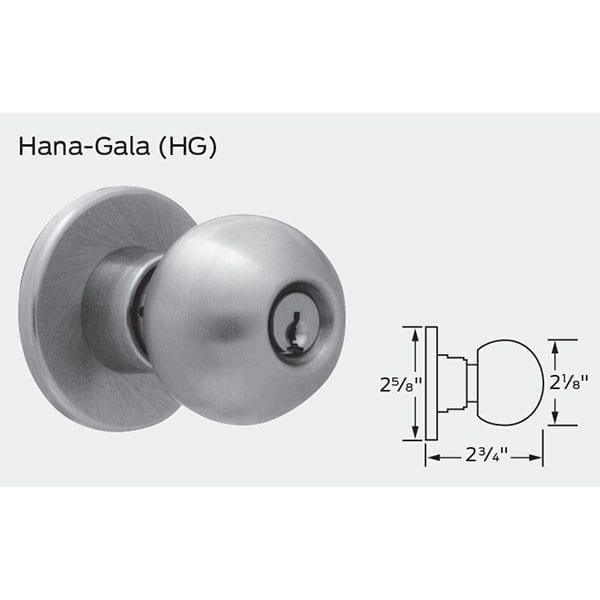

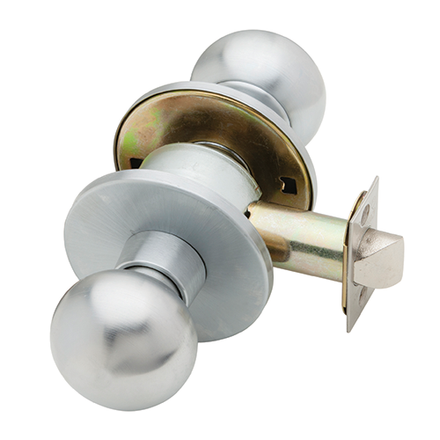

Falcon X101S HG Hana-Gala Passage Knob
