Product Overview
When you need a tough, reliable knob lock, you need a Falcon® X Series lock.

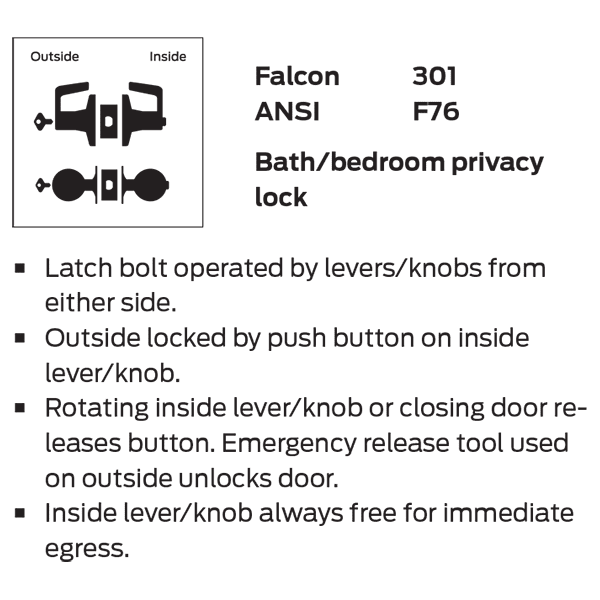

ANSI Function F76 – Keyless – Latch by knobs. Outside knob is locked by push button on inside knob. Rotating inside knob or closing door releases push button and frees outside knob. Inside knob is always free. Emergency release in outside knob unlocks door.
- Certified ANSI/BHMA A156.2, Series 4000, Grade 1 for quality and reliability
- Durable and reliable - Brass or cold-formed steel construction with a zinc dichromate for rust resistance
- Durable - Heavy-wrought brass, bronze or stainless steel roses over steel through-bolted rose inserts provide added strength
- UL listed for 3 hour A label doors
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.2 Series 4000 Grade 1 for quality and reliability |
|---|---|
| Backset |
2-3/4" |
| Brand |
Falcon |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Privacy |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Warranty |
10 Year Limited |

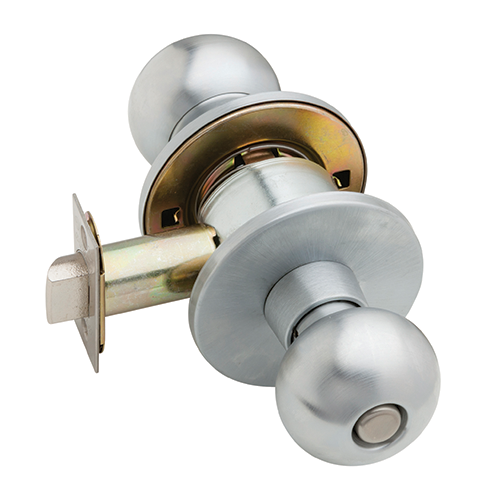

Falcon X301S HG Hana-Gala Privacy Knob Lock
