Product Overview

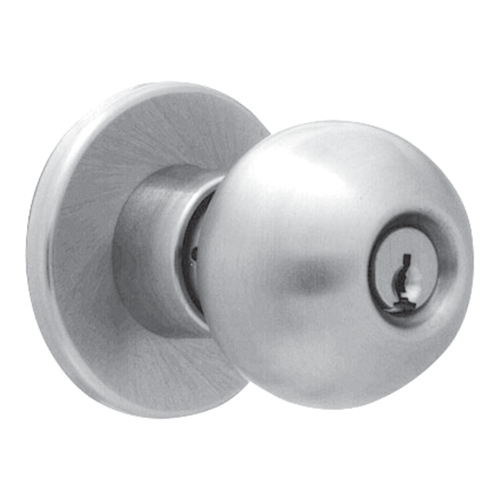

When you need a tough, reliable knob lock, you need a Falcon® X Series lock.

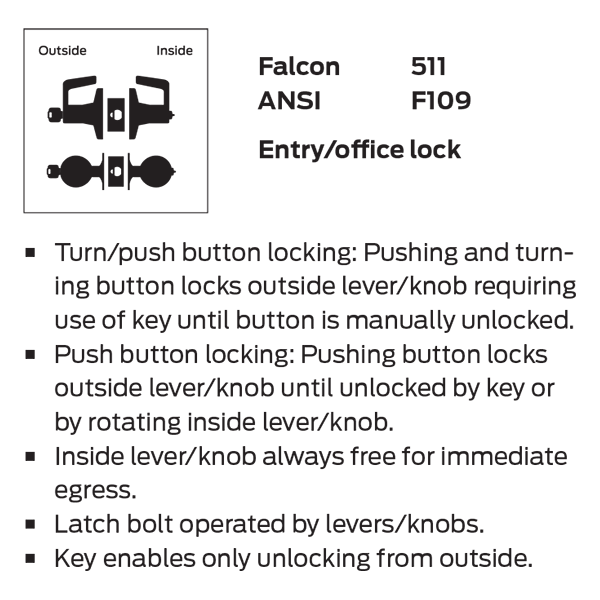

ANSI Function F109 – Deadlocking latch bolt by knobs. Turn/push button locking. Pushing and turning button locks outside knob, requiring use of a key for unlocking the door until the button is manually unlocked. Pushing button locks outside knob until unlocked by key or by rotating inside knob. Inside knob is always free.
- Certified ANSI/BHMA A156.2, Series 4000, Grade 1 for quality and reliability
- Durable and reliable - Brass or cold-formed steel construction with a zinc dichromate for rust resistance
- Durable - Heavy-wrought brass, bronze or stainless steel roses over steel through-bolted rose inserts provide added strength
- UL listed for 3 hour A label doors
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.2 Series 4000 Grade 1 for quality and reliability |
|---|---|
| Backset |
2-3/4" |
| Brand |
Falcon |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours - UL symbol on the latch front |
| Handing |
Non-Handed |
| Keyway |
Schlage C Keyway |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Lock Function |
Entry (Entrance) |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Warranty |
10 Year Limited |
