Hager 2928 Electric Strike for Cylindrical or Mortise Locks

$170.85
Usually Ships:  3-5 Business Days
  • Used with cylindrical or mortise locksets with up to 3/4" latch
  • Fail Secure - Field reversible for fail-safe
  • Field selectable voltage - 12/24V, AC/DC

Available Options:

Clear

Product Overview

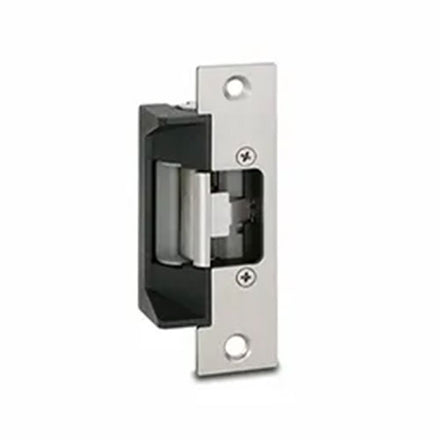

Hager 2928 Electric Strike, Field Reversible Fail Safe/Secure, 12/24VDC, Satin Stainless Steel Finish


Used with single doors using a cylindrical or mortise lockset with up to a 3/4" latch bolt throw. (3/4" latch bolt throw requires a minimum 1/8" door gap)
  • Quick and easy installation with low profile 1-3/16” backset
  • Internally mounted solenoid and factory-supplied mounting tabs
  • Non-handed
  • Fail secure standard; field reversible to fail-safe
  • Field selectable voltage - 12/24V, AC/DC
  • Plug-in connectors
  • Latch position status (standard)
  • Keeper locked/unlocked status (standard)
  • KOC - Keeper open/closed and status (optional)
  • Fewer moving parts for maximum life
  • 1/4" (6 mm) horizontal alignment adjustment
  • ANSI A156.13 compliant, Grade 2
  • UL-1034 Burglary Resistant (interior use application)
  • Not to be installed in an inactive door leaf
Electrical Specifications
  • 200/100mA @ 12/24VDC - Solenoid | 140/70mA @ 12/24VAC - Solenoid
  • SPDT, 3A @ 30VDC - Latch Monitoring
  • SPDT, 3A @ 30VDC - Keeper Closed & Locked Status
  • SPDT, 3A @ 30VDC - Keeper Open/Closed (Optional)

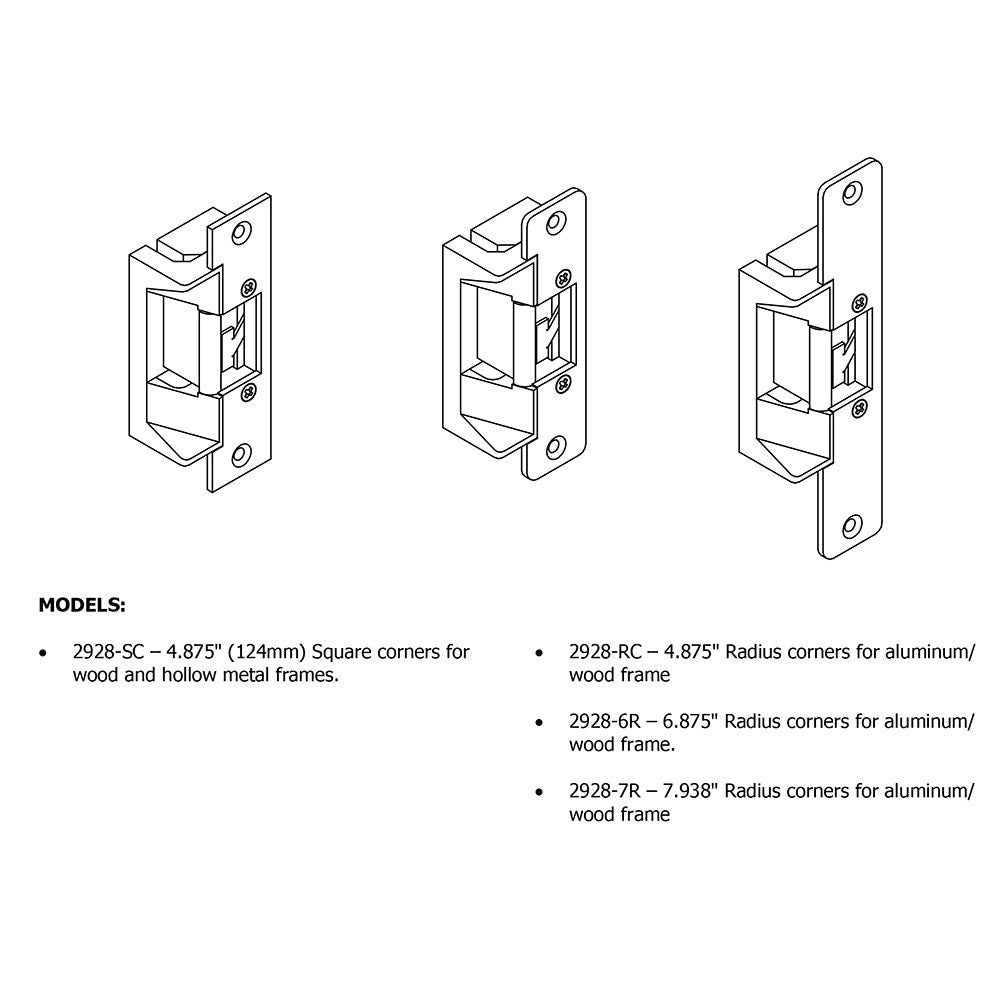

Models
  • 2928-SC - 1-1/4” W x 4-7/8” H x 1-3/16” D - Square corners for wood and hollow metal frames
  • 2928-RC - 1-1/4” W x 4-7/8” H x 1-3/16” D - Radius corners for aluminum/wood frame
  • 2928-6R - 1-1/4” W x 6-7/8” H x 1-3/16” D - Radius corners for aluminum/ wood frame
  • 2928-7R - 1-7/16” W x 7-15/16” H x 1-3/16” D - Radius corners for aluminum/wood frame
Finishes
  • US32D Satin Stainless Steel  (Square Corner)
  • ALM Painted Satin Aluminum (Radius Corner)
Brand

Hager
Model

2928-6R - 1-1/4” W x 6-7/8” H, 2928-7R - 1-7/16” W x 7-15/16” H, 2928-RC - 1-1/4” W x 4-7/8” H, 2928-SC - 1-1/4” W x 4-7/8” H
Finishes

US32D (630) Satin Stainless Steel
Usage

Standard Duty
ANSI/BHMA Standard

ANSI A156.13 compliant, Grade 2
Fire Rating

None
Lock Type Compatibility

Cylindrical Lock, Mortise Lock
Warranty

1 Year
